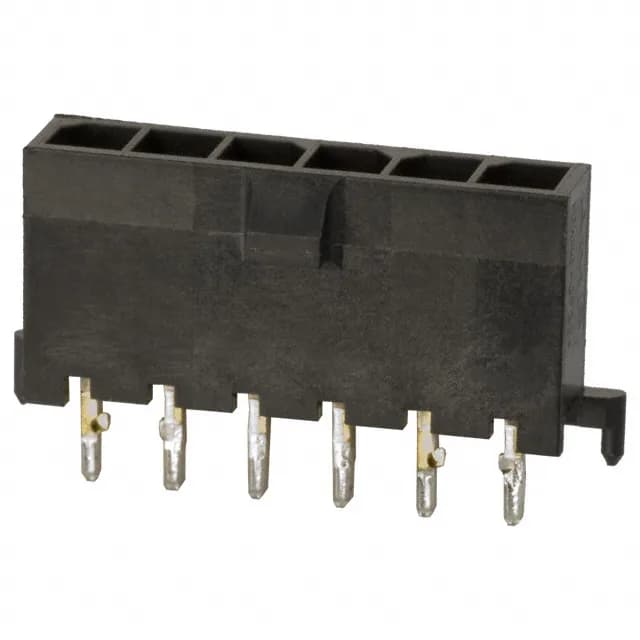

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 2-1445093-6, board-to-cable/wire style, shrouded 4-wall, 6 positions single row, 3.00 mm pitch, vertical through-hole, press-fit and solder termination, gold mating finish, locking ramp, -40°C to 105°C, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.364\" (9.25mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 2-1445093-6: This is a single-row, 6-position header on 3.00 mm pitch — the footprint takes six through-hole pins in a straight line, each 0.125" (3.18 mm) post length.
Current rating depends on the wire gauge in the mating receptacle; the header itself is rated 250 V.
0.118" (3.00 mm) pitch, single row, 6 positions.
Yes, it is ROHS3 compliant.
It mates with a Micro MATE-N-LOK receptacle housing (6-position, 3.00 mm pitch) using the appropriate crimp terminals. The locking ramp on the header engages the latch on the receptacle.
