Contact Plating and Mating Cycle Life
The 2-1445094-2: The post finish is 100 µinch tin, suitable for soldering into a through-hole PCB.
Environmental and Compliance
ROHS3 compliant per TE Connectivity's current material declarations.

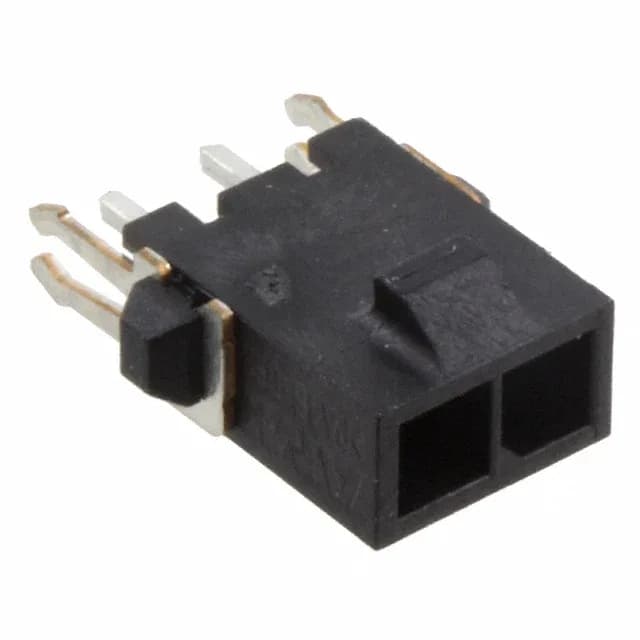

2-1445094-2 TE Connectivity Micro MATE-N-LOK Header, 2 Pos
MPN2-1445094-2
Active
TE Connectivity AMP Connectors Micro MATE-N-LOK header, 2 circuits, single row, 3.00 mm pitch, through-hole, shrouded, gold mating contact, board lock, locking ramp, UL94 V-0, -40°C to 105°C.
$1.4400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro MATE-N-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.364\" (9.25mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the mating connector for 2-1445094-2?
This header mates with a Micro MATE-N-LOK receptacle housing (sold separately) that accepts crimp terminals. Confirm the circuit count and pitch match your receptacle before committing.
Is 2-1445094-2 RoHS compliant?
Yes, it is listed as ROHS3 Compliant per the manufacturer's current material declarations.
What is the current rating of 2-1445094-2?
For a given wire gauge, refer to the Micro MATE-N-LOK application note for derating curves.
