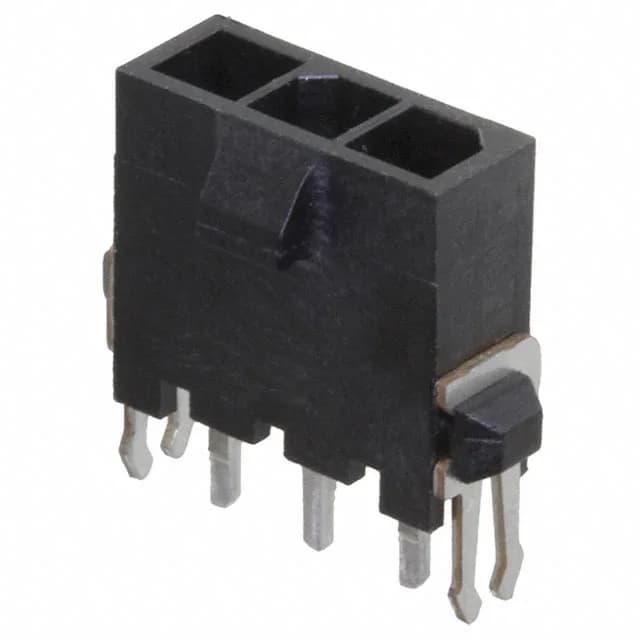

TE Connectivity AMP Connectors Micro MATE-N-LOK, 2-1445094-3, Header, 3 positions, 3.00 mm pitch, single row, through hole, shrouded 4-wall, gold mating finish, UL94 V-0
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.364\" (9.25mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
TE Connectivity AMP Connectors 2-1445094-3 is a 3-position, single-row, vertical through-hole header from the Micro MATE-N-LOK series.
If it backs out, it's scrap.
Submit an RFQ with your target quantity and delivery window.
The mating half is a Micro MATE-N-LOK receptacle housing that accepts the corresponding crimp terminals. The locking ramp on the header engages with the latch on the receptacle — the pair is keyed so it can't go in wrong.
Yes, 2-1445094-3 is ROHS3 compliant.
