TE Connectivity Micro MATE-N-LOK header, order code 2-1445096-6, 6 positions, single row, 0.118" (3.00mm) pitch, 250 V, gold-plated mating contacts, surface-mount, shrouded - 4 wall, locking ramp, solder termination.

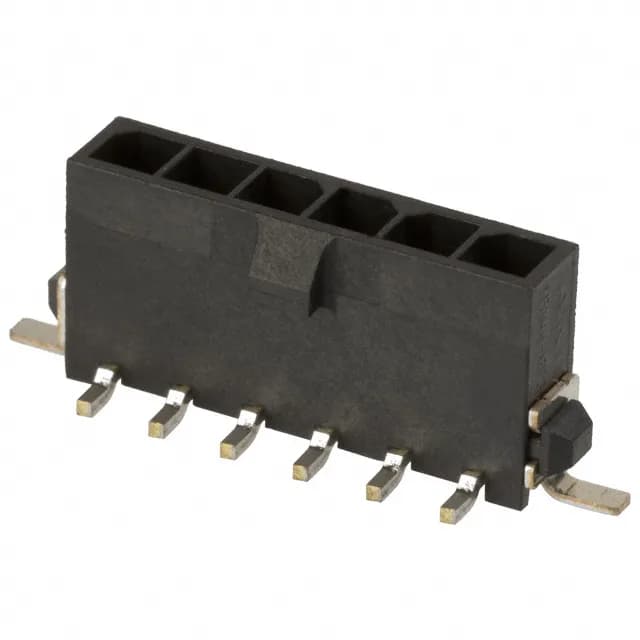

2-1445096-6 TE Micro MATE-N-LOK Header, 6 Pos, 3.00mm
MPN2-1445096-6
Active
TE Connectivity Micro MATE-N-LOK header, order code 2-1445096-6, 6 positions, single row, 0.118" (3.00mm) pitch, 250 V, gold-plated mating contacts, surface-mount, shrouded - 4 wall, locking ramp, solder termination.
$2.1357Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.364\" (9.25mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Features | Pick and Place, Solder Retention |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
