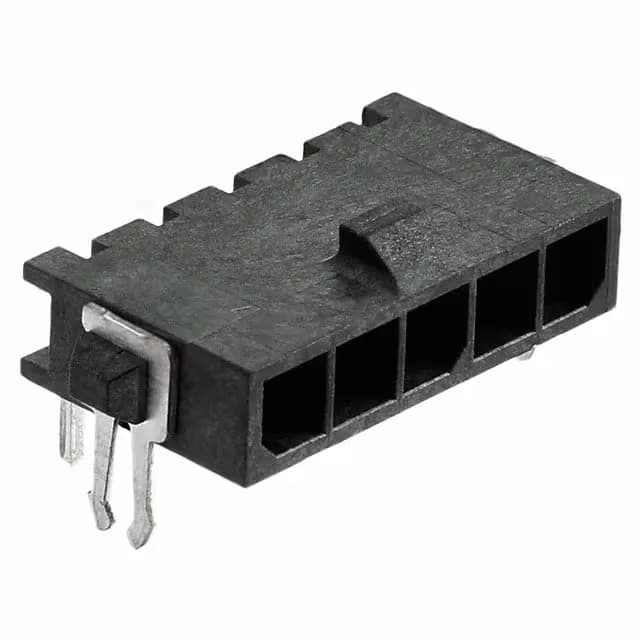

5-circuit wire-to-board header
The 2-1445097-5 is the 5-circuit member of TE's Micro MATE-N-LOK header line, a shrouded single-row board-to-wire header with a locking ramp for positive retention. Rated 250 V with gold-plated mating contacts (30.0µin / 0.76µm), the header mounts through-hole right-angle and includes a board lock for reflow retention.
Housing and mounting
The black nylon housing carries a UL94 V-0 flammability rating and operates from -40°C to 105°C. The shrouded 4-wall design protects the square male pins during handling and mating.
