3-position right-angle header with locking ramp
The 2-1445098-3 is the 3-circuit member of TE's Micro MATE-N-LOK header line, a shrouded right-angle board-to-wire header with a locking ramp for positive retention.

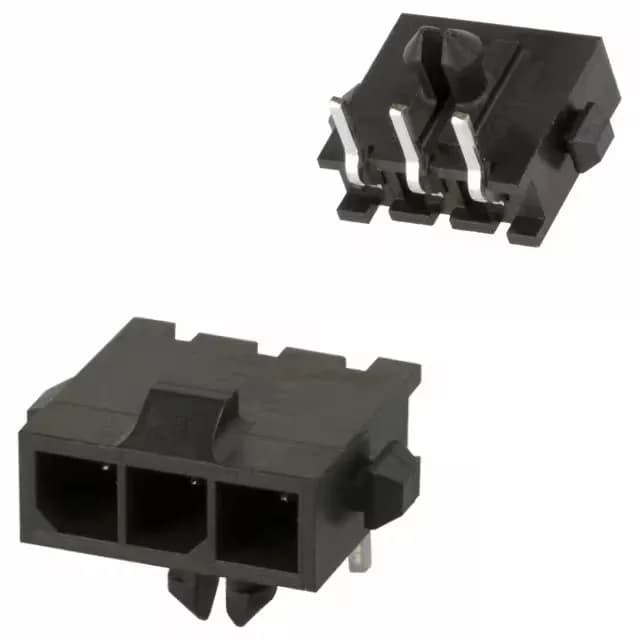

TE Micro MATE-N-LOK 2-1445098-3 Header, 3-Pos 3.00mm
MPN2-1445098-3
Active
TE Connectivity AMP Connectors Micro MATE-N-LOK header, order code 2-1445098-3, 3 positions, single row, 3.00 mm pitch, 250 V, gold-plated mating contacts, through-hole right-angle, solder termination, board lock.
$1.4200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro MATE-N-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.152\" (3.85mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the closest pin-compatible alternative to 2-1445098-3?
The Micro MATE-N-LOK series includes other position counts and orientations, but a direct replacement would require matching the 3-position, 3.00 mm pitch, right-angle, board-lock configuration. Confirm the BOM position count and mating half before substituting.
Where can I buy 2-1445098-3 and check stock?
Sourced to order against your BOM quantity through independent distribution.
