Board-fit and orientation
The 2-1445100-4: The right-angle orientation puts the mating axis parallel to the board, which saves vertical clearance in compact enclosures.
Operating temperature range is -40°C to 105°C.

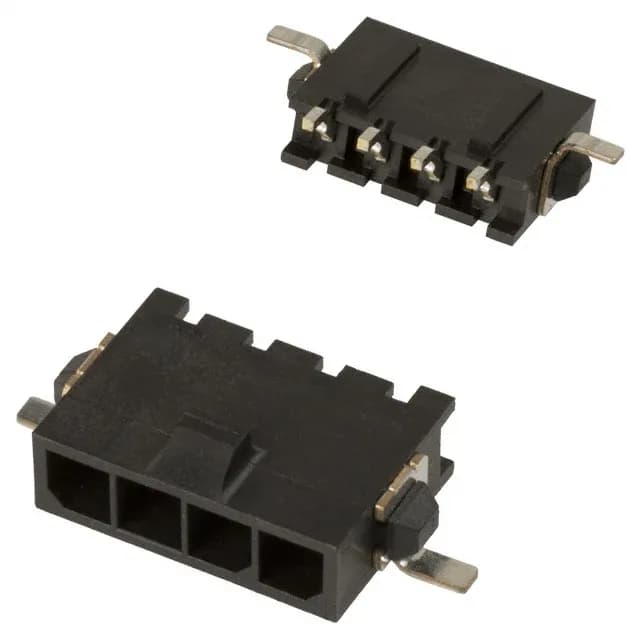

2-1445100-4 TE Connectivity Header SMD R/A 4POS 3mm
MPN2-1445100-4
Active
TE Connectivity AMP Connectors Micro MATE-N-LOK header, 2-1445100-4, 4 positions, 3.00mm pitch, SMD right-angle, shrouded 4-wall, gold mating contacts, locking ramp, UL94 V-0.
$2.0800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro MATE-N-LOK
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.152\" (3.85mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the mating connector for 2-1445100-4?
This header mates with the Micro MATE-N-LOK receptacle housing and crimp terminals (same series). The locking ramp on the header engages the latch on the receptacle for a vibration-resistant connection.
