TE Connectivity AMP Connectors 2-1445100-6 — Pin Headers

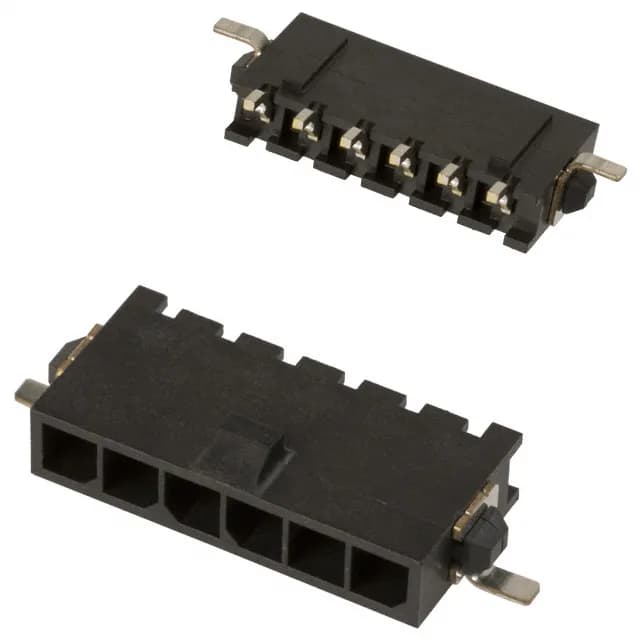

2-1445100-6 TE Connectivity Micro MATE-N-LOK Header SMD R/A

MPN2-1445100-6
Active

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 2-1445100-6, 6 positions, 3.00mm pitch, shrouded-4-wall, surface mount right-angle, male pin, gold mating contacts, locking ramp, UL94 V-0, -40°C to 105°C.

$1.3517Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro MATE-N-LOK
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-1445100-6 key specifications
ParameterValue
SeriesMicro MATE-N-LOK
TypeMale Pin
MountingSurface Mount, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.152\" (3.85mm)
Insulation materialPolyamide (PA), Nylon

All specifications

2-1445100-6 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows1
Pitch0.118\" (3.00mm)
Positions6
Contact finish - postTin
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

What this 6-position right-angle SMT header is for

The 2-1445100-6 is a 6-position, single-row header from the TE Micro MATE-N-LOK series, designed for board-to-cable/wire connections. Its 3.00mm pitch and right-angle surface-mount orientation suit it for low-profile, space-constrained PCB layouts where the cable exits parallel to the board. The shrouded 4-wall housing protects the male pins during mating and prevents stubbing against the receptacle.

Mating half and termination details

This header mates with Micro MATE-N-LOK receptacle housings (e.g., 3-1445100-x series) using the matching crimp terminals. The tin-plated solder posts (100.0 µin thickness) wet well with standard lead-free solder pastes.

Frequently asked questions

What is the mating connector for 2-1445100-6?

2-1445100-6 mates with Micro MATE-N-LOK receptacle housings (e.g., 3-1445100-x series) that accept the matching crimp terminals. The locking ramp on the header engages the receptacle latch for a vibration-resistant connection.

Is 2-1445100-6 RoHS compliant?

Yes, 2-1445100-6 is ROHS3 compliant per TE Connectivity's current compliance declaration.
