TE Connectivity AMP Connectors 2-1470109-2 — Pin Headers

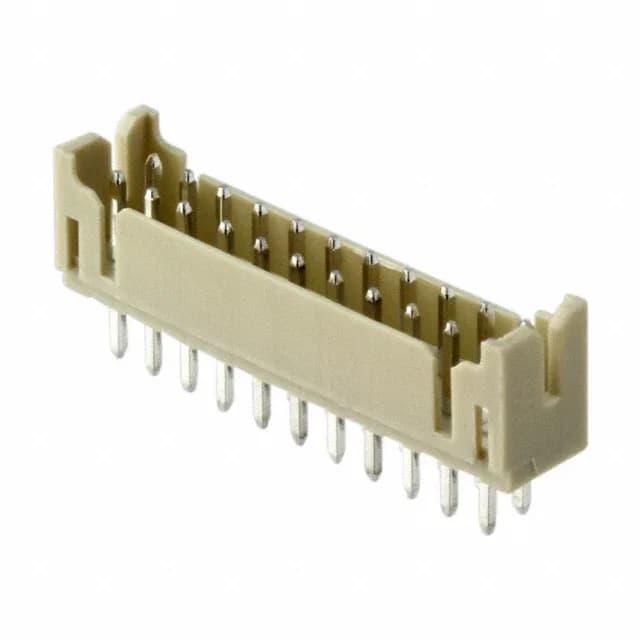

2-1470109-2 TE AMPMODU Header, 22 Pos, 2mm Pitch

MPN2-1470109-2
Active

TE Connectivity AMPMODU, Board to Board or Cable, Header, 22 Positions, 2 Rows, 0.079" (2.00mm) Pitch, Through Hole, Solder, Shrouded - 4 Wall, Detent Lock, Tin Mating and Post Finish, 3A, 100VDC, UL94 V-0, -25°C ~ 85°C

$1.0500Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-1470109-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPMODU
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-1470109-2 key specifications
ParameterValue
SeriesAMPMODU
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeDetent Lock
Voltage rating100VDC
Current rating3A
Operating temperature-25°C ~ 85°C
Contact materialBrass
Insulation colorNatural
Insulation height0.256\" (6.50mm)
Insulation materialPolyamide (PA66), Nylon 6/6

All specifications

2-1470109-2 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions22
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.118\" (3.00mm)
Contact finish - matingTin
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

22-Pin, 2.00mm Pitch, Dual-Row Shrouded Header

The 2-1470109-2: The 4-wall shrouding and detent lock make it a positive-mating connector for board-to-board or cable-to-board applications where vibration or accidental disconnection is a concern.

Current, Voltage, and Temperature Envelope

The tin-on-tin contact finish (100.0µin on both mating and post sides) is suited for moderate mating cycle counts — expect reliable performance in low-power signal or control circuits, not high-current power distribution.

Frequently asked questions

What is the pitch and number of rows of 2-1470109-2?

0.079" (2.00mm) pitch, dual-row. The row-to-row spacing is also 2.00mm.
