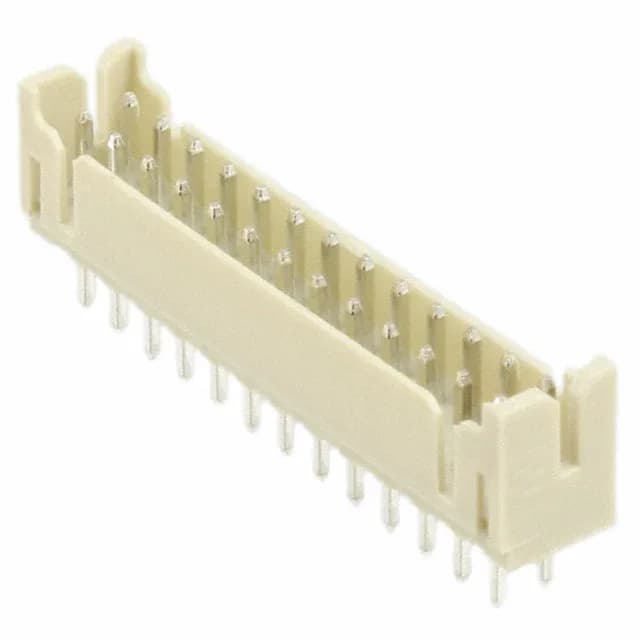

TE Connectivity AMPMODU header, 2-1470109-6, 26 positions, 2.00 mm pitch, dual-row, through-hole, shrouded 4-wall, detent lock, tin-plated contacts, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 100VDC |
| Current rating | 3A |
| Operating temperature | -25°C~85°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.256\" (6.50mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 26 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The detent lock gives a positive retention feel when mated — in a board-to-board or cable assembly subject to moderate vibration, the latch keeps the pair together without needing a secondary screw or clip.
The natural colour helps visual inspection of solder joints on the back side.
