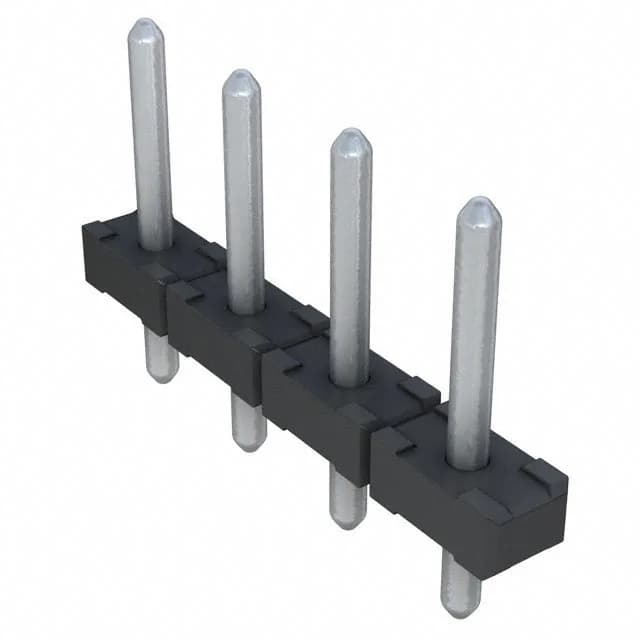

TE Connectivity Buchanan header, order code 2-1546931-8, 4 positions, single level, 5.00 mm pitch, 12 A, 300 V, tin-plated mating contacts, through-hole vertical, solder termination.
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Unshrouded |
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 12 A |
| Color | Black |
| Contact material | Brass |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.079\" (2.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Tape & Reel (TR) |
| Parameter | Value |
|---|---|
| Features | Side Stacking |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 4 |
| Positions per level | 4 |
| Contact mating finish | Tin |
The 2-1546931-8: Tin-plated brass contacts rated 12 A at 300 V, through-hole vertical mounting with solder termination. The side-stacking feature allows multiple headers to be ganged for additional positions.
The 2-1546931-8 carries 4 positions on a single level with a 5.00 mm pitch. The vertical header orientation and 0.138" (3.50 mm) contact tail length suit through-hole soldering into a single-layer PCB.
The 2-1546931-8 is an unshrouded header with male pins, vertical through-hole mounting, and solder termination. It is a single-level design with 4 positions at 5.00 mm pitch.
