TE Connectivity AMP Connectors 2-1564337-1 — Connector Housings

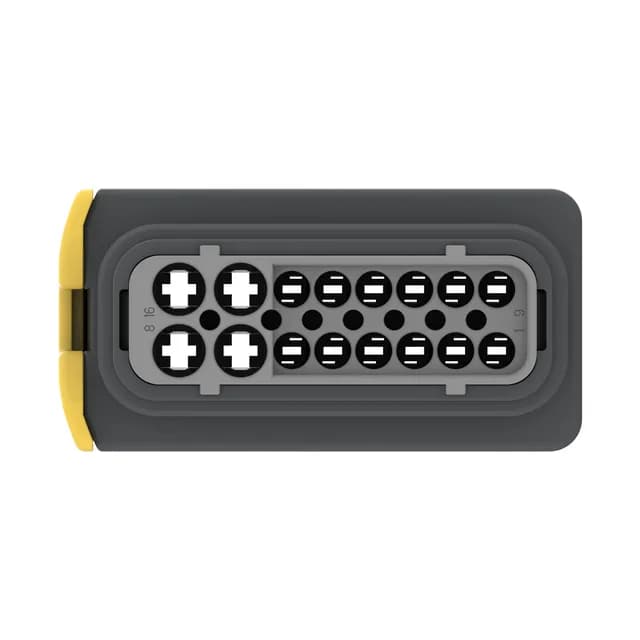

TE 2-1564337-1 MCP 1.5K/2.8 Receptacle Housing, 16 Pos

MPN2-1564337-1
Active

TE Connectivity Heavy Duty Sealed Connector Series, MCP 1.5K/2.8, receptacle housing, 16 positions, 2 rows, gray, sealed, free hanging, crimp termination, -40°C to 140°C.

$4.1800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesHeavy Duty Sealed Connector Series, MCP 1.5K/2.8
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

2-1564337-1 specifications
ParameterValue
SeriesHeavy Duty Sealed Connector Series, MCP 1.5K/2.8
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeSlide-On
Operating temperature-40°C ~ 140°C
ColorGray
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
NoteContacts Not Included
PackageBulk
FeaturesSealed
Row spacing0.236\" (6.00mm)
Rows2
Contact terminationCrimp
Positions16

Product details

Sealed 16-Way Receptacle for Harsh Environments

The TE Connectivity 2-1564337-1 is a 16-position receptacle housing from the Heavy Duty Sealed Connector Series, part of the MCP 1.5K/2.8 family.

What You Get (and What You Don't)

The 0.236" (6.00 mm) row spacing and 2-row layout give you room to land 20-18 AWG power wires without fighting for space. Fastening is a Slide-On style — no locking ramp, just a push-to-mate fit that holds with an interference seal. The insulation material is glass-filled PBT, which handles the temperature swing and resists fuel and oil splash.

The gray colour and sealed housing are the distinguishing features; if you need a natural or black housing, the series offers other options, but the 16-position sealed receptacle is this specific code.

Frequently asked questions

What is the price of 2-1564337-1?

Price determines budget and BOM cost; essential for procurement decisions.

Where to buy 2-1564337-1?

Buyers need verified distributors to ensure genuine parts and availability.

Is 2-1564337-1 sealed?

Sealing rating dictates suitability for harsh environments; critical for reliability.

Does 2-1564337-1 include contacts?

Contacts are sold separately; knowing this prevents ordering incomplete assemblies.

What is the mating connector for 2-1564337-1?

Ensures correct pin-header selection for proper connection in the application.

What is the operating temperature range of 2-1564337-1?

Temperature limits define where the housing can be safely used in thermal environments.
