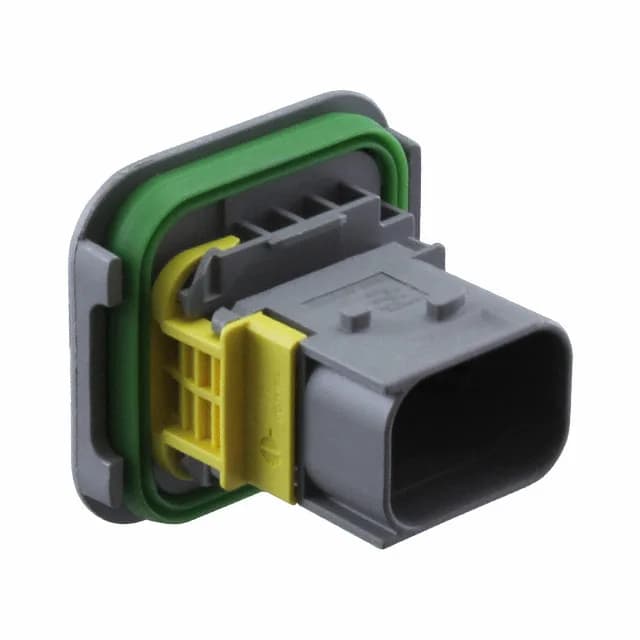

Sealed 8-Position Plug Housing for Harsh-Duty Harnesses
The gray glass-filled PBT housing carries a mounting flange for panel-mount applications and is sealed against ingress — the sealing is integral to the housing, not dependent on a secondary boot. Contacts are ordered separately (crimp termination, tab type), so the BOM line for this part covers only the housing and the mating seal.
What the 4.00 mm Pitch and Sealing Mean for the Harness Build
The 4.00 mm pitch and 6.00 mm row spacing give this housing a generous cavity size that accepts the MCP 1.5K crimp terminals without crowding — the spacing is wide enough that the wire seals seat fully without interference between adjacent cavities.
For the MCP 1.5K series, the matching crimp terminals are tab-type (male) for this plug housing. The terminal part numbers are not listed here, but the series designation (MCP 1.5K) and the 4.00 mm pitch narrow the search to TE's 1.5 mm blade-width terminals. Order the housing and the terminals as separate BOM lines; the housing ships in bulk packaging.
