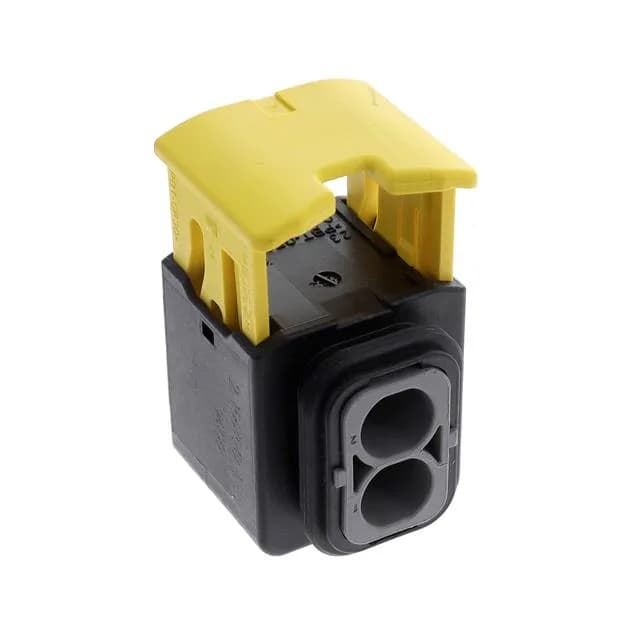

TE 2-1564542-1 MCP 6.3 Receptacle Housing, 2 Pos, 9mm

MPN2-1564542-1
Active

TE Connectivity Heavy Duty Sealed Connector Series, MCP 6.3, 2-1564542-1, 2 Position, 1 Row, 0.354" (9.00mm) Pitch, Receptacle, Female Socket, Crimp, Free Hanging, Sealed, Gray, PBT-GF, -40°C ~ 140°C.

$2.2100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesHeavy Duty Sealed Connector Series, MCP 6.3
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

2-1564542-1 specifications
ParameterValue
SeriesHeavy Duty Sealed Connector Series, MCP 6.3
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeSlide-On
Operating temperature-40°C ~ 140°C
ColorGray
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
NoteContacts Not Included
Pitch0.354\" (9.00mm)
PackageBulk
FeaturesSealed
Rows1
Contact terminationCrimp
Positions2

Product details

Two-Position Sealed Receptacle for MCP 6.3 Harnesses

Sealed Housing — Mated Condition Only

The housing carries a Sealed feature, but the IP rating only holds when the connector is fully mated with the corresponding plug and the slide-on fastening is locked. The PBT-GF housing and the integrated seal withstand washdown chemistry and moisture ingress, but the unmated half needs a protective cap between shifts — treat the seal as mated-only.

Sourcing Note: Contacts Are Separate

The 9.00 mm pitch and single-row layout accept the standard MCP 6.3 contact family for 2-position sealed circuits.

Mating Half and Fastening

This receptacle mates with the MCP 6.3 plug housing (e.g., the 1-1703532-1, a 2-position black plug with a locking ramp). The slide-on fastening engages with the plug's locking ramp for a vibration-resistant connection. Confirm the plug's pitch matches — the 1-1703532-1 uses a 9.50 mm pitch, not the 9.00 mm of this receptacle, so verify the mating pair in the assembly drawing before committing.

Frequently asked questions

What contacts are compatible with 2-1564542-1?

The housing accepts MCP 6.3 series female socket crimp terminals. Contacts are not included with this housing and must be ordered separately. Confirm the wire gauge range from the MCP 6.3 terminal datasheet.

Is 2-1564542-1 a sealed connector?

Yes, the housing is listed with a Sealed feature. The seal is effective only when the connector is fully mated with the corresponding plug and the slide-on lock is engaged.
