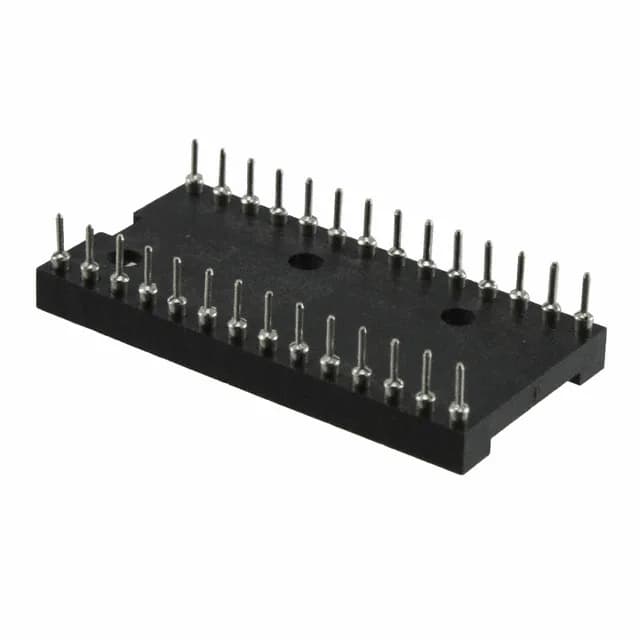

TE Connectivity AMP Connectors Series 500 DIP header, order code 2-1571550-9, 28 positions, dual row, 0.100" (2.54mm) pitch, gold-plated mating contacts, through-hole solder termination, UL94 V-0.
| Parameter | Value |
|---|---|
| Type | DIP, 0.6\" (15.24mm) Row Spacing |
| Series | 500 |
| Mounting | Through Hole |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact material - post | Beryllium Copper |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 10mOhm |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - post | 25.0µin (0.63µm) |
| Contact finish thickness - mating | 25.0µin (0.63µm) |
| Number of positions or pins | 28 (2 x 14) |
The 2-1571550-9 is the 28-circuit member of TE's Series 500 DIP header line, arranged 2 x 14 on 0.600" (15.24 mm) row spacing.
TE Connectivity AMP has marked the 2-1571550-9 as Obsolete.
A board spin may be required for a functional replacement.
The housing material is rated UL94 V-0.
