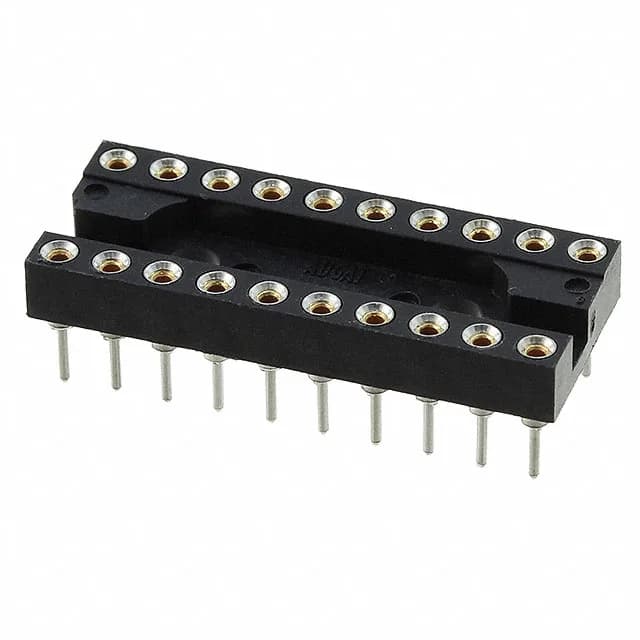

20-position DIP socket, 0.100" pitch, closed frame
The 2-1571551-6: Gold-plated mating contacts rated 3 A per circuit, through-hole solder termination, housed in a UL94 V-0 polyester closed frame.
2-1571551-6 TE Connectivity AMP Connectors Pin Header
MPN2-1571551-6
Obsolete
TE Connectivity AMP Connectors Series 500 DIP socket, order code 2-1571551-6, 20 positions (2 x 10), 0.100" (2.54mm) pitch, 0.3" (7.62mm) row spacing, 3 A, gold-plated mating contacts, through hole, solder termination, tube package.
$2.6100Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | 500 |
| Mounting | Through Hole |
| Current rating | 3 A |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Polyester |
| Contact material - post | Copper Alloy |
| Contact material - mating | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Closed Frame |
| Termination | Solder |
All specifications
| Parameter | Value |
|---|---|
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 10mOhm |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - mating | Flash |
| Number of positions or pins | 20 (2 x 10) |
Product details
Frequently asked questions
How do I get current pricing and availability for 2-1571551-6?
Availability is confirmed at RFQ. Submit a request with the target quantity; the distributor sources from independent surplus channels where lot-specific quantities are confirmed per inquiry.
