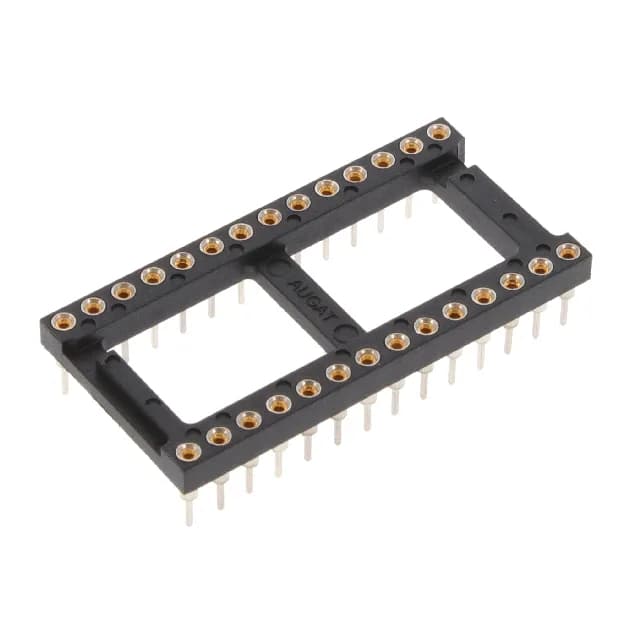

TE Connectivity 800 series DIP socket, order code 2-1571586-9, 28 positions, dual row, 0.100" (2.54 mm) pitch, gold-plated mating contacts, through-hole solder termination, open frame.
| Parameter | Value |
|---|---|
| Type | DIP, 0.6\" (15.24mm) Row Spacing |
| Series | 800 |
| Mounting | Through Hole |
| Operating temperature | -55°C~105°C |
| Housing material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact material - post | Copper |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 10mOhm |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - post | 25.0µin (0.63µm) |
| Contact finish thickness - mating | 25.0µin (0.63µm) |
| Number of positions or pins | 28 (2 x 14) |
The 2-1571586-9 is the 28-position member of TE Connectivity's 800 series DIP socket line, arranged in a 2 x 14 grid with 0.6" (15.24 mm) row spacing.
The 2-1571586-9 is listed as Obsolete. No pin-compatible successor order code is available from TE Connectivity for this 800 series DIP socket.
