22-Position Wire-to-Board Plug Housing for VAL-U-LOK Harnesses

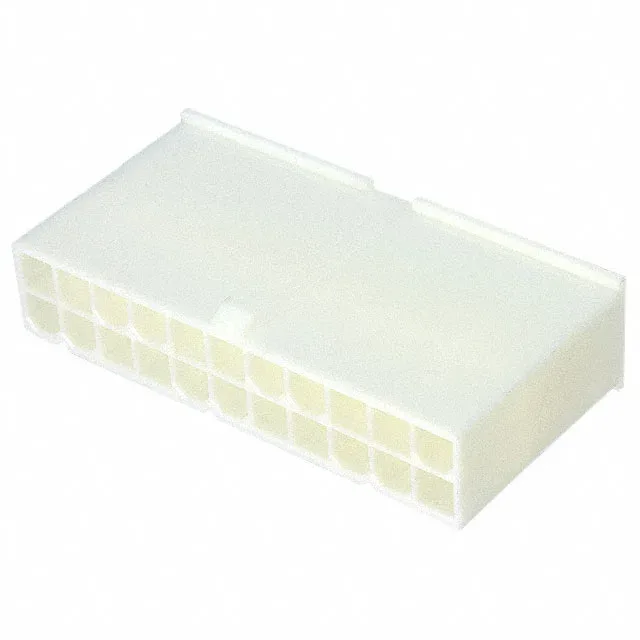

The TE Connectivity 2-1586017-2 is a 22-position plug housing from the VAL-U-LOK series, designed for wire-to-board power and signal interconnects in harness assemblies. With a 4.20mm pitch and dual-row layout, it accepts male pin crimp contacts and mates with the corresponding VAL-U-LOK receptacle housing. The natural polyamide (PA) nylon body carries a latch lock for positive retention in moderate-vibration environments typical of appliance, automotive, and industrial control panels.
The 22 positions at 4.20mm pitch match the footprint of a standard VAL-U-LOK dual-row header. For a 22-circuit harness, this housing is the exact count; a 24-circuit BOM would need a different member of the series.
Contacts Are Ordered Separately
The listing explicitly notes contacts are not included. This housing accepts TE VAL-U-LOK male pin crimp terminals.
Temperature Range and Material Suit Enclosed Equipment
Rated -40°C to 105°C, the PA nylon housing covers the operating envelope of most automotive interior, underhood, and industrial cabinet applications.
