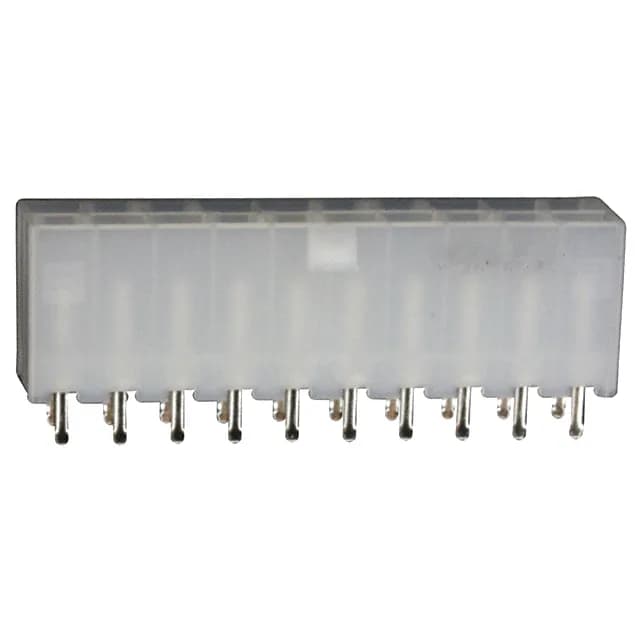

TE Connectivity AMP-DUAC header, order code 2-1586491-0, 20 positions, dual row, 4.20 mm pitch, 600 VAC, tin-plated mating contacts, through-hole, shrouded 4-wall, locking ramp, solder termination.
| Parameter | Value |
|---|---|
| Series | AMP-DUAC |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600VAC |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.504\" (12.80mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-2 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.165\" (4.20mm) |
| Positions | 20 |
| Row spacing - mating | 0.165\" (4.20mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 118.1µin (3.00µm) |
The 2-1586491-0 is the 20-circuit member of TE's AMP-DUAC shrouded header line, a board-to-board or cable interconnect rated 600 VAC. Dual-row 4.20 mm pitch with tin-plated mating contacts, through-hole solder termination, and a 4-wall shrouded housing with locking ramp.
