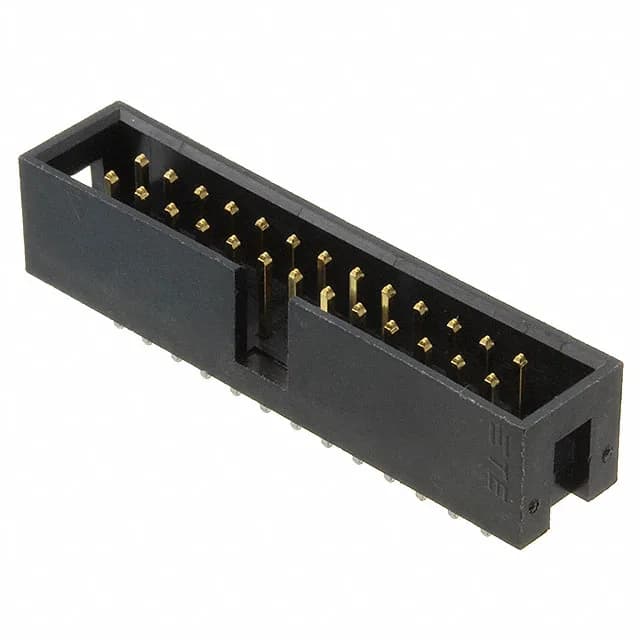

TE Connectivity AMP Connectors AMP-Latch header, order code 2-1634688-6, 26 positions, dual row, 0.100" (2.54 mm) pitch, 3 A, gold-plated mating contacts, through-hole solder termination, shrouded - 4 wall, push-pull fastening.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -40°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.343\" (8.71mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.228\" (5.80mm) |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
The 2-1634688-6 is the 26-circuit member of TE's AMP-Latch shrouded header line, designed for board-to-cable/wire connections. It carries gold-plated mating contacts rated 3 A and mounts through-hole with solder termination; the 4-wall shrouding and keying slot guide the mating receptacle and prevent misalignment.
The 2-1634688-6 is listed as Obsolete by TE Connectivity AMP Connectors.
Availability is confirmed at RFQ through independent surplus channels; quantities are lot-specific.
The style is Board to Cable/Wire, per the spec record.
The material flammability rating is UL94 V-0. RoHS and REACH compliance documentation is typically available from the manufacturer for the series; confirm with the datasheet or supplier at RFQ.
