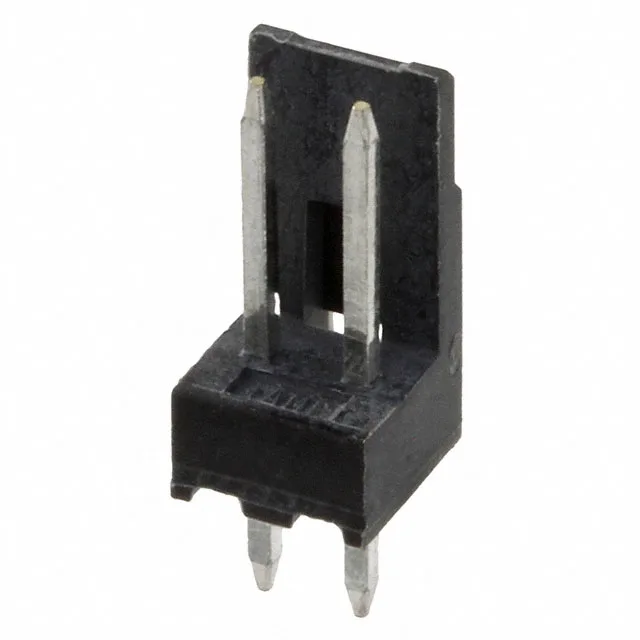

TE Connectivity AMP Connectors EI series header, order code 2-172487-2, 2 positions, single row, 0.098" (2.50 mm) pitch, 2 A, 250 VAC / 350 VDC, tin-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | EI |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250VAC, 350VDC |
| Current rating | 2A |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.409\" (10.40mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact length - post | 0.142\" (3.60mm) |
| Overall contact length | 0.551\" (14.00mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.295\" (7.49mm) |
| Contact finish thickness - post | 31.5µin (0.80µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
The 2-172487-2 is the 2-circuit member of TE's EI series board-to-wire header line, shrouded on one wall with a detent lock for positive retention. Rated 2 A at 250 VAC / 350 VDC, the tin-plated mating contacts suit general-purpose signal-level interconnects in a through-hole solder termination.
The 2-172487-2 is a board-to-cable/wire header with a shrouded 1-wall design and detent lock fastening.
