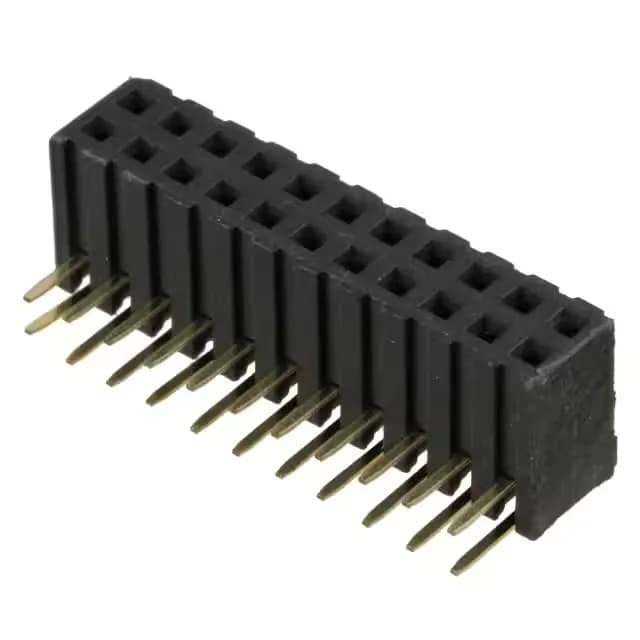

TE Connectivity AMPMODU series, 22-position dual-row female socket receptacle, 2.00 mm pitch, gold-plated mating contacts, through-hole right-angle termination, UL94 V-0 thermoplastic housing.
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC |
| Operating temperature | -40°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.191\" (4.85mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 22 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
The 2-1734531-2: In a low-vibration board-stack application this is sufficient, but for high-shock environments a locking header half should be considered.
The part ships in tube packaging.
The 22-position part offers higher circuit density for wider bus applications.
As a 2.00 mm pitch dual-row receptacle, it mates with AMPMODU pin headers of the same pitch, row count, and position count. The push-pull interface requires a mating header with a matching 22-position dual-row configuration.
Yes, it carries ROHS3 compliance status.
