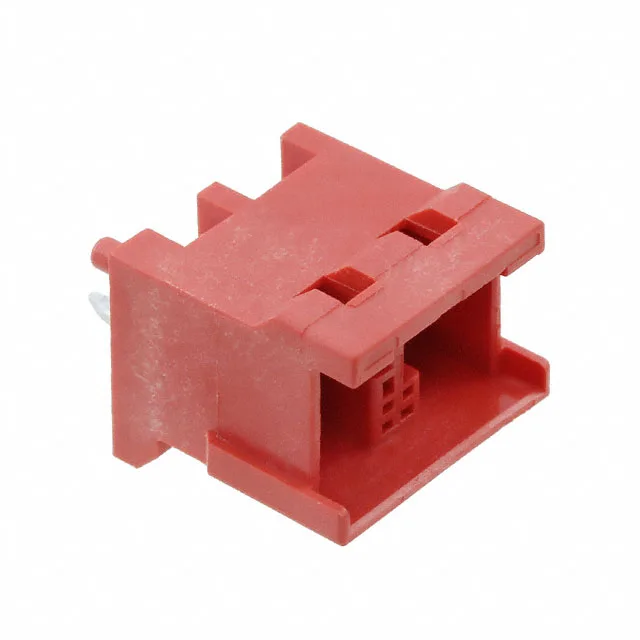

TE Connectivity AMP Connectors Grace Inertia, GIC header, order code 2-1747052-2, 2 positions, single row, 7.92 mm pitch, 300 VAC, tin-plated mating contacts, through-hole, press-fit/solder termination, shrouded - 4 wall.
| Parameter | Value |
|---|---|
| Series | Grace Inertia, GIC |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 300VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Red |
| Insulation height | 0.571\" (14.50mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.312\" (7.92mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
The 2-1747052-2 is the 2-circuit member of TE's Grace Inertia (GIC) board-to-cable/wire header line. It carries tin-plated mating contacts rated 300 VAC and mounts through-hole with a combined press-fit/solder termination.
It is a Board to Cable/Wire header from the Grace Inertia, GIC series.
RoHS/REACH status is managed by TE Connectivity AMP Connectors per their standard documentation.
