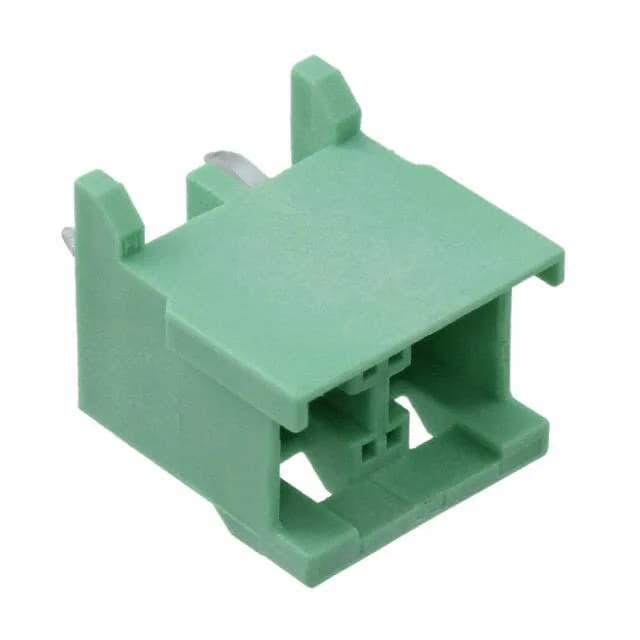

TE Connectivity AMP Connectors 2-1747052-5
MPN2-1747052-5
Active
$0.5789Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Grace Inertia, GIC |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 300VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -30°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Green |
| Insulation height | 0.571\" (14.50mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.312\" (7.92mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
