TE Connectivity AMP Connectors 2-1761603-3 — Pin Headers

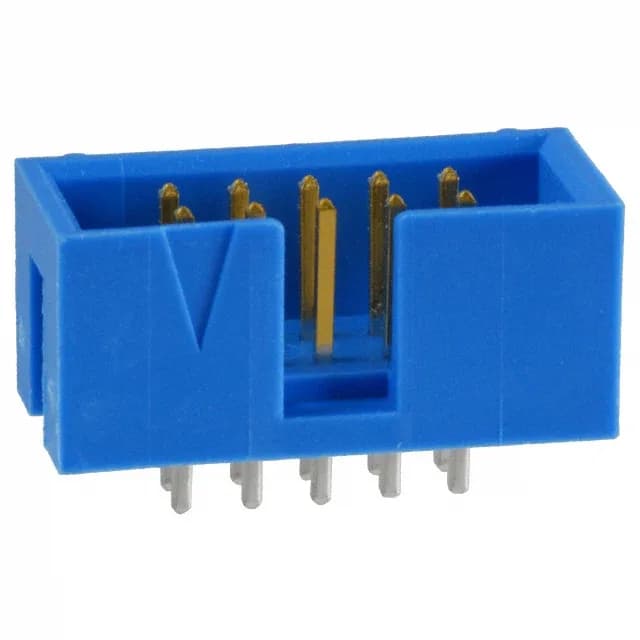

2-1761603-3 TE AMP-Latch Header 10 Pos 2.54mm

MPN2-1761603-3
Active

TE Connectivity AMP-Latch header, 2-1761603-3, Board to Cable/Wire, 10 positions, 2.54 mm pitch, shrouded 4-wall, keying slot, through-hole solder, 1 A per contact, 250 VAC, Active.

$4.0600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-1761603-3 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

2-1761603-3 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typePush-Pull
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlue
Insulation height0.350\" (8.89mm)
Insulation materialPolybutylene Terephthalate (PBT)

All specifications

2-1761603-3 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions10
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.102\" (2.60mm)
Contact finish - matingGold
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

10-pin AMP-Latch header for cable-to-board harnesses

The 2-1761603-3 is a 10-position, dual-row header from the AMP-Latch series, pitched at 0.100" (2.54 mm) — the standard spacing for ribbon-cable IDC connectors and discrete wire harnesses. The full 4-wall shroud and a keying slot mean the mating cable plug can only go in one orientation — no reversed or misaligned connections in a harness build.

What the shrouding and keying mean on the bench

A shrouded header with a keying slot is standard for AMP-Latch IDC ribbon-cable receptacles. The keying slot physically blocks a non-keyed or wrong-keyed plug from seating — a common safeguard in multi-harness panels.

Frequently asked questions

Does 2-1761603-3 have a keying slot?

Yes, the header includes a keying slot as a standard feature, which prevents mating with a non-keyed or wrong-keyed cable plug.

What is the mating connector for TE 2-1761603-3?

This shrouded header mates with AMP-Latch IDC ribbon-cable receptacles of the same pitch (2.54 mm) and position count (10 positions). The keying slot must match the receptacle's keying profile.
