TE Connectivity AMP Connectors 2-1761603-5 — Pin Headers

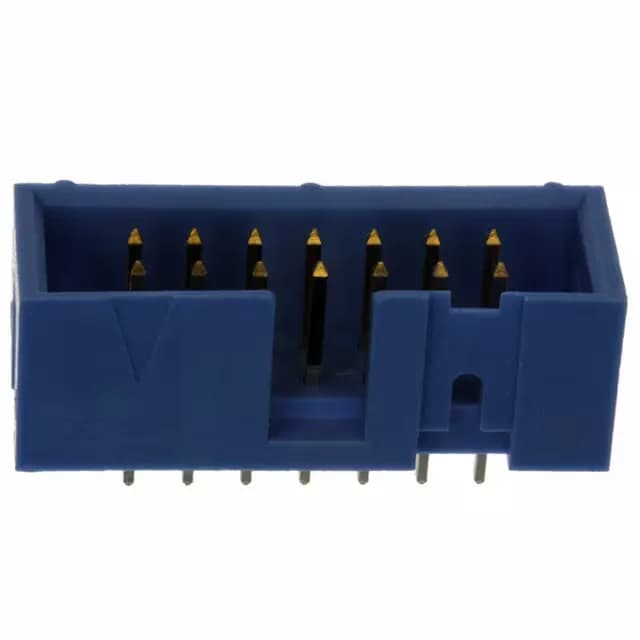

TE Connectivity 2-1761603-5 AMP-Latch Header, 14-Pin, 2.54mm

MPN2-1761603-5
Active

TE Connectivity AMP-Latch 2-1761603-5, 14-position dual-row shrouded header, 0.100" (2.54mm) pitch, through-hole solder termination, gold-plated mating contacts, push-pull fastening, blue PBT housing, UL94 V-0.

$5.3200Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-1761603-5 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMP-Latch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-1761603-5 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typePush-Pull
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C~105°C
Contact materialPhosphor Bronze
Insulation colorBlue
Insulation height0.350\" (8.89mm)
Insulation materialPolybutylene Terephthalate (PBT)

All specifications

2-1761603-5 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions14
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.102\" (2.60mm)
Contact finish - matingGold
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

14-Pin Shrouded Header for IDC Harnessing

The 2-1761603-5: It mates with standard 0.100-inch pitch IDC receptacles, making it a go-to for ribbon cable harnesses in industrial control, test equipment, and legacy data interfaces. A keying slot on the header ensures only a matching keyed receptacle can be mated, preventing mis-wiring in multi-connector systems.

Board Fit and Mating Dimensions

The insulation height of 0.350 inches (8.89 mm) gives clearance for the receptacle latch and cable strain relief above the board.

Frequently asked questions

Where can I buy TE Connectivity 2-1761603-5 header?

No immediate stock commitment is made on this listing.

Is 2-1761603-5 compatible with standard IDC connectors?

Yes — the 0.100-inch pitch and dual-row layout are the standard AMP-Latch footprint. It mates with any 14-position IDC receptacle that accepts a shrouded header with keying slot, such as TE 1-111196-2 or equivalent.
