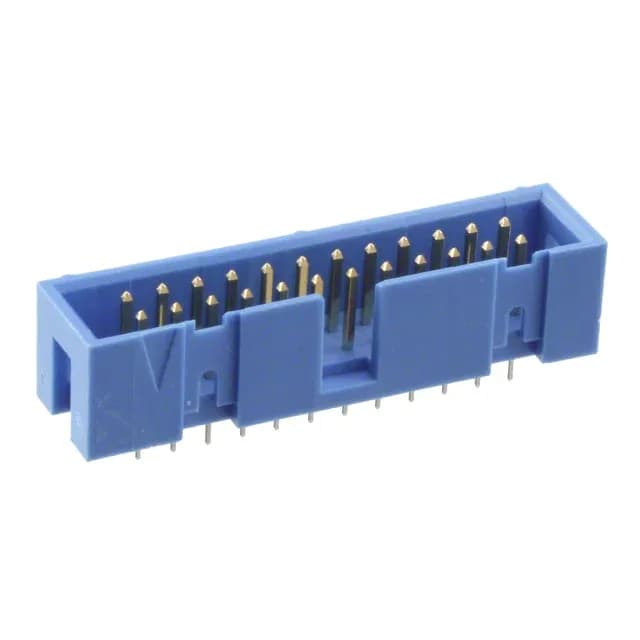

TE Connectivity AMP-Latch header, 2-1761603-8, 24 positions, 0.100" (2.54 mm) pitch, through-hole, shrouded - 4 wall, gold mating finish, 1 A per contact, 250 VAC, UL94 V-0, blue insulation.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.350\" (8.89mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 24 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 2-1761603-8: This is a 24-position, dual-row, through-hole header from the AMP-Latch series, designed for board-to-cable/wire connections. The full 4-wall shrouding protects the male pins during handling and alignment. Rated at 1 A per contact and 250 VAC, this header is suited for signal-level interconnects in control, instrumentation, and data applications.
This header mates with AMP-Latch receptacles designed for 0.100-inch pitch IDC ribbon cable.
Yes, it is ROHS3 compliant.
The mating pitch is 0.100" (2.54 mm) and the row spacing is also 0.100" (2.54 mm).
