TE Connectivity AMP Connectors 2-1761605-3 — Pin Headers

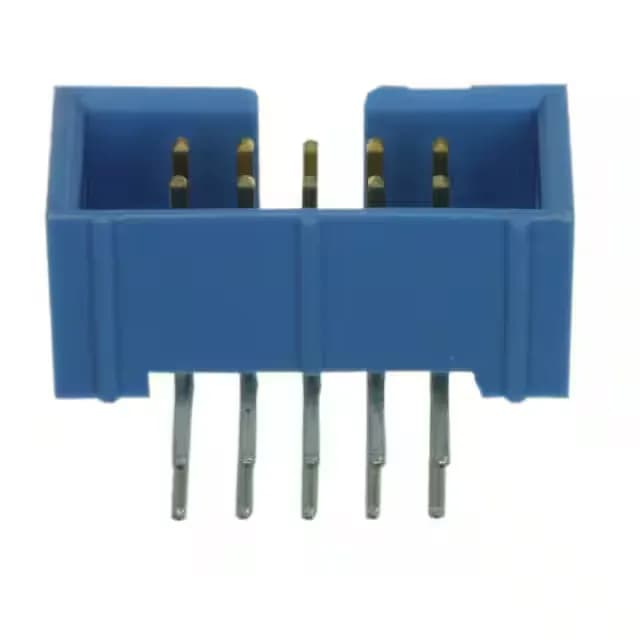

2-1761605-3 TE Connectivity AMP-Latch Header 10 Pos 2.54mm

MPN2-1761605-3
Active

TE Connectivity AMP-Latch header, 2-1761605-3, 10 positions, 2.54mm pitch, right-angle through-hole, shrouded 4-wall, gold mating contacts, 1A per contact, 250VAC, UL94 V-0.

$7.3100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-1761605-3 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMP-Latch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-1761605-3 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C~105°C
Contact materialPhosphor Bronze
Insulation colorBlue
Insulation height0.350\" (8.89mm)
Insulation materialPolybutylene Terephthalate (PBT)

All specifications

2-1761605-3 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions10
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.102\" (2.60mm)
Contact finish - matingGold
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Right-Angle Routing and Board Fit

The 2-1761605-3: A push-pull latch holds the pair together, and a keying slot prevents inserting the wrong cable assembly.

Contact Plating and Mating Duty

Mating contacts are gold over phosphor bronze, 30.0 µinch thick. The post (solder tail) is tin-plated at 100.0 µinch, which wets well during wave soldering and provides a reliable solder joint.

Sourced per RFQ; availability and current pricing confirmed at quote time. No official cross-reference or direct replacement from TE Connectivity — this is the current order code for the 10-position, right-angle, gold-plated variant in the AMP-Latch series.

Frequently asked questions

Is 2-1761605-3 RoHS compliant?

Yes, ROHS3 compliant per the manufacturer's listing.
