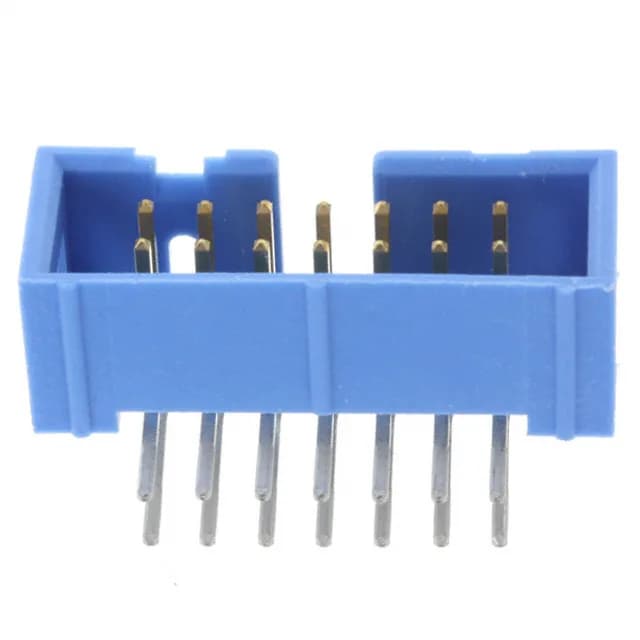

2-1761605-5 TE AMP-Latch Header, 14 Pos, 2.54mm, Right Angle

MPN2-1761605-5
Active

TE Connectivity AMP-Latch, Header, 14 Positions, 0.100" (2.54mm) Pitch, 2 Rows, Through Hole, Right Angle, Shrouded - 4 Wall, Gold Mating Finish, 1A per Contact, 250VAC, Active

$8.2600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-1761605-5 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMP-Latch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-1761605-5 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlue
Insulation height0.350\" (8.89mm)
Insulation materialPolybutylene Terephthalate (PBT)

All specifications

2-1761605-5 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions14
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.102\" (2.60mm)
Contact finish - matingGold
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Right-angle shrouded header for ribbon-cable interconnects

The 2-1761605-5 is a 14-position, 2-row header from the AMP-Latch series, designed to mate with standard 0.100-inch pitch IDC sockets for board-to-cable wiring.

Pitch, footprint, and keying slot

The 0.102" (2.60mm) post length fits typical 1.6mm-thick PCBs with enough protrusion for a reliable solder fillet. A keying slot in the shroud prevents mating with unkeyed receptacles — a safeguard in multi-connector panels where mis-mating could route signals to the wrong harness.

RoHS3 compliant, UL94 V-0 rated PBT housing — the flammability rating satisfies equipment-level safety requirements for most industrial and commercial enclosures.

Frequently asked questions

What is the exact pitch of 2-1761605-5?

The mating pitch is 0.100" (2.54mm) on both rows, with the same 0.100" row spacing. This is the standard AMP-Latch pitch for IDC ribbon-cable connectors.

Is 2-1761605-5 a shrouded right-angle header?

Yes, it is a shrouded 4-wall right-angle header.

Does 2-1761605-5 have a keying slot?

Yes, the header includes a keying slot to prevent mis-mating with unkeyed receptacles. This is a standard feature on AMP-Latch headers for polarization.
