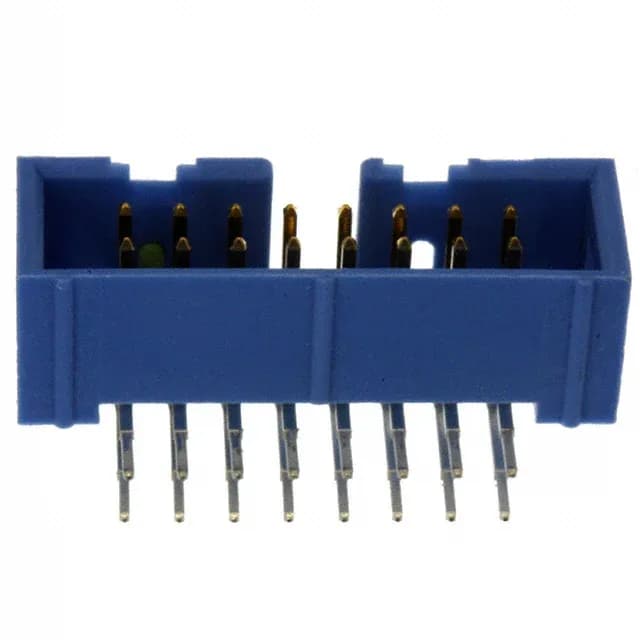

TE Connectivity AMP-Latch series, 2-1761605-6, 16-position dual-row header, 0.100" (2.54mm) pitch, right-angle through-hole, shrouded 4-wall, gold-plated male pins, rated 1 A per contact at 250 VAC.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.350\" (8.89mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 2-1761605-6: The UL94 V-0 PBT housing keeps the connector safe inside equipment that requires a flame rating.
Phosphor bronze contact material with gold-over-nickel on the mating face gives a reliable spring characteristic and corrosion resistance.
The mating pitch is 0.100" (2.54mm), and the row spacing is also 0.100" (2.54mm).
Yes, it is listed as RoHS compliant.
Yes, the header includes a keying slot to prevent mis-mating with incompatible receptacles.
Through-hole, right-angle mounting — the pins solder into plated through-holes and the header sits perpendicular to the board.
