Board-to-cable wiring with a shrouded right-angle header

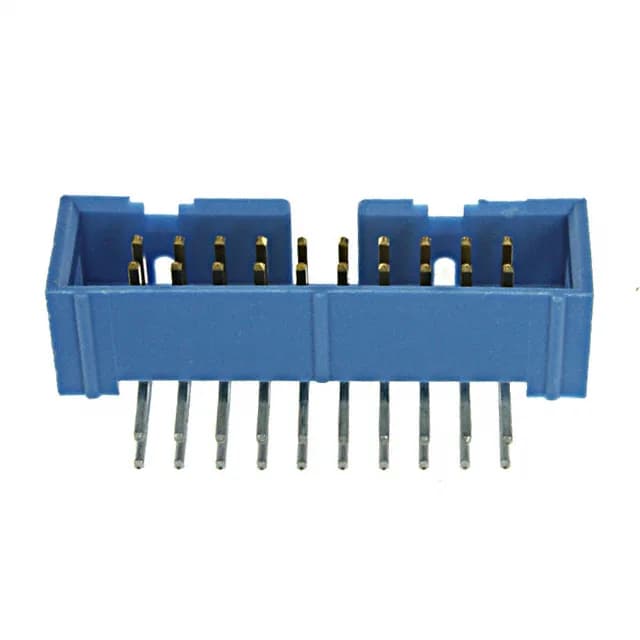

The 2-1761605-7: This 20-position header from the AMP-Latch series mates with standard 0.100-inch pitch IDC ribbon cable receptacles, giving you a reliable board-to-cable interconnect for signal-level wiring.
Pitch, positions, and current for BOM fit
With 20 positions loaded, a 0.100-inch mating pitch, and a matching 0.100-inch row spacing, this header aligns with standard 20-conductor ribbon cable — no custom footprint needed. Each contact is rated 1 A, typical for signal duty in AMP-Latch headers; the 250 VAC voltage rating covers most control and instrumentation circuits.
