TE Connectivity AMP Connectors 2-1761605-9 — Pin Headers

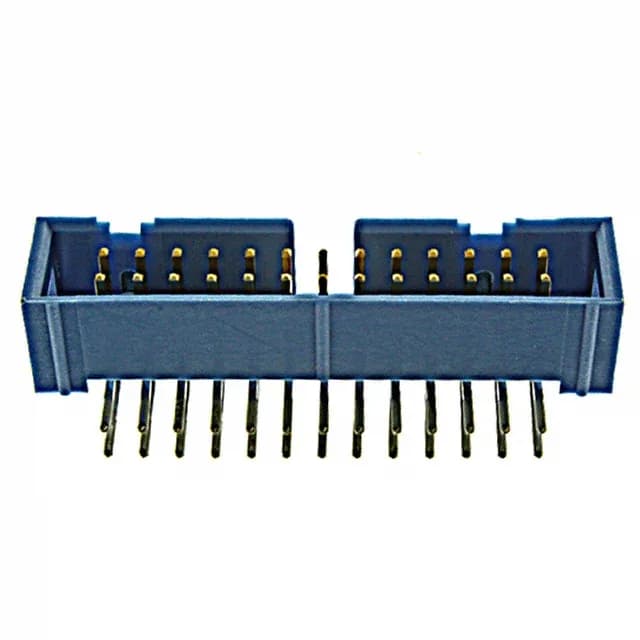

2-1761605-9 TE AMP-Latch Header 26 Pos 2.54mm Right Angle

MPN2-1761605-9
Active

TE Connectivity AMP-Latch, Header, 26 Positions, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Gold Mating Contacts, Shrouded - 4 Wall, Keying Slot, 1A per Contact, 250VAC, -65°C ~ 105°C, UL94 V-0

$9.7700Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-1761605-9 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMP-Latch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-1761605-9 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlue
Insulation height0.350\" (8.89mm)
Insulation materialPolybutylene Terephthalate (PBT)

All specifications

2-1761605-9 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions26
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.102\" (2.60mm)
Contact finish - matingGold
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

26-Position Right-Angle Header for Wire-to-Board

A keying slot in the shroud ensures the mating receptacle can only be inserted one way, reducing the chance of mis-wiring in multi-connector panels.

Right-Angle Routing and Contact Plating

The right-angle body means the solder tails extend 0.102" (2.60mm) below the PCB, while the mating pins reach 0.240" (6.10mm) into the receptacle. This geometry suits boards where the cable bundle must fold flat against the board surface. The 26-position count means the total current through the header is limited by the sum of the active circuits, but each pin is individually rated.

Frequently asked questions

Is the 2-1761605-9 a right-angle or straight header?

It is a right-angle through-hole header. The pins exit parallel to the PCB, not perpendicular.

What mating connector works with the 2-1761605-9 AMP-Latch header?

This header mates with AMP-Latch receptacles (IDC or crimp types) that have a 0.100" pitch, 26-position, dual-row layout, and accept the shrouded keying slot. Confirm the receptacle part number against your cable assembly.
