TE Connectivity AMP Connectors 2-1761606-1 — Pin Headers

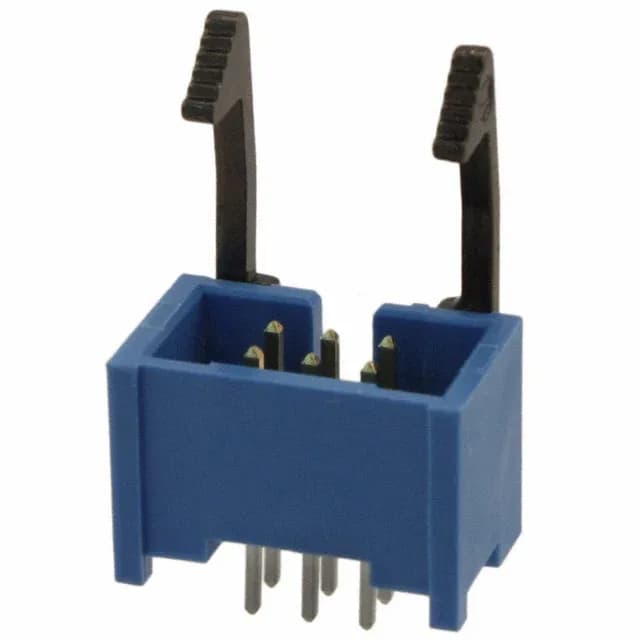

2-1761606-1 TE AMP-Latch Header 6 Pos 2.54mm Pitch

MPN2-1761606-1
Active

TE Connectivity AMP-Latch, 2-1761606-1, Board to Cable/Wire Header, 6 Positions, 2 Rows, 0.100" (2.54mm) Pitch, Through Hole, Solder, Shrouded - 4 Wall, Latch Lock/Eject Hooks, Long, Gold or Gold-Palladium Mating, 1A per Contact, 250VAC, -65°C ~ 105°C, UL94 V-0.

$4.4500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-1761606-1 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks, Long
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlue
Insulation height0.404\" (10.26mm)
Insulation materialPolybutylene Terephthalate (PBT)

All specifications

2-1761606-1 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions6
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.102\" (2.60mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.237\" (6.02mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board-to-Cable Header for AMP-Latch Ribbon Cable Harnesses

TE Connectivity AMP-Latch 2-1761606-1 is a 6-position, 2-row, 0.100" (2.54mm) pitch shrouded header designed for board-to-cable/wire interconnect. It mates with AMP-Latch IDC receptacles to form a reliable connection for ribbon cable harnesses. The header is through-hole solder-terminated with a 4-wall shroud, latch lock/eject hooks, and a keying slot that prevents mismating and secures the cable assembly under vibration.

Pitch, Position Count, and Mating Interface

With 6 positions loaded (all positions), this header provides a compact 2-row footprint for low-circuit-count harnesses where space on the PCB is tight.

Confirm current pricing and lead time via an RFQ — availability is confirmed at quote time.

Frequently asked questions

What is the mating connector for 2-1761606-1?

2-1761606-1 mates with TE AMP-Latch IDC receptacles (e.g., 1-111196-2 series) that accept 2.54mm pitch ribbon cable. The latch lock/eject hooks secure the cable assembly.

Is 2-1761606-1 RoHS compliant?

Yes, 2-1761606-1 is ROHS3 compliant.

What is the exact pinout for 2-1761606-1?

All positions are loaded. The keying slot is located on the shroud to ensure correct orientation with the mating receptacle.

What are the closest pin-compatible alternatives to 2-1761606-1?

Within the AMP-Latch series, other 6-position, 2-row, 0.100" pitch shrouded headers with the same latch lock and keying slot are direct alternatives. Confirm the contact finish and post length match your application.
