TE Connectivity AMP Connectors 2-1761606-3 — Pin Headers

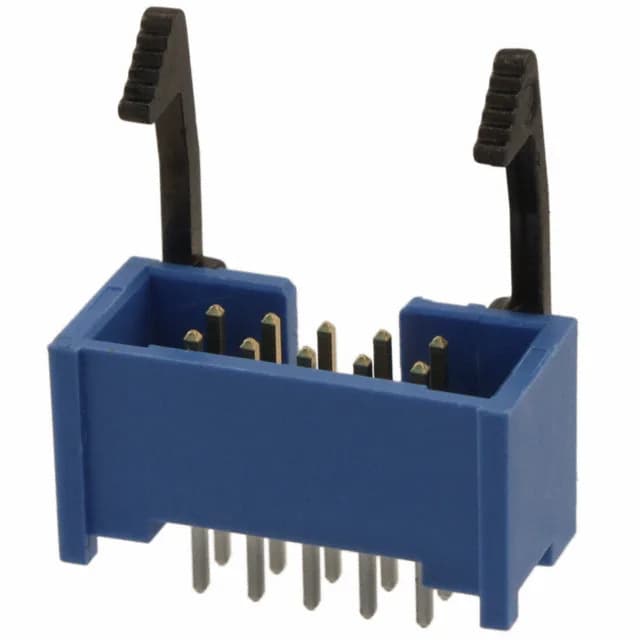

2-1761606-3 TE Connectivity AMP-Latch Header 10 Pos 2.54 mm

MPN2-1761606-3
Active

TE Connectivity AMP-Latch, Header, 10 Positions, 2 Rows, 0.100" (2.54 mm) Pitch, Through Hole, Solder, Shrouded - 4 Wall, Latch Lock/Eject Hooks, Blue Insulation, 1 A per Contact, 250 VAC, -65°C ~ 105°C

$5.1000Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

2-1761606-3 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks, Long
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlue
Insulation height0.404\" (10.26mm)
Insulation materialPolybutylene Terephthalate (PBT)

All specifications

2-1761606-3 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions10
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.102\" (2.60mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.237\" (6.02mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board-to-Cable Header with Positive Locking

The 0.100-inch (2.54 mm) pitch matches standard IDC ribbon cable and the shrouded 4-wall housing protects the male pins during handling and mating.

Parametric Fit for Signal and Low-Power Duty

The post side is tin-plated (100.0 µin) for reliable solder joint formation. The square male pins are phosphor bronze, with a mating length of 0.237 inches (6.02 mm) and a post length of 0.102 inches (2.60 mm) for through-hole soldering.

Mates with AMP-Latch IDC socket connectors that have a 0.100-inch pitch and latch lock/eject hooks. Termination is solder through-hole. The 2.54 mm row spacing matches standard IDC ribbon cable pitch.

Frequently asked questions

Is 2-1761606-3 a direct replacement for 2-1761606-1?

Both are 10-position AMP-Latch headers with the same pitch and locking mechanism. The difference is in the contact finish thickness on the mating side — 2-1761606-3 has 30.0 µin gold or gold-palladium, while other variants may differ. Confirm the plating requirement for your application before substituting.

What mating connector is used with the AMP-Latch 2-1761606-3 header?

It mates with AMP-Latch IDC socket connectors that have a 0.100-inch pitch, 2 rows, and latch lock/eject hooks. The keying slot ensures correct orientation.
