TE Connectivity AMP Connectors 2-1761606-6 — Pin Headers

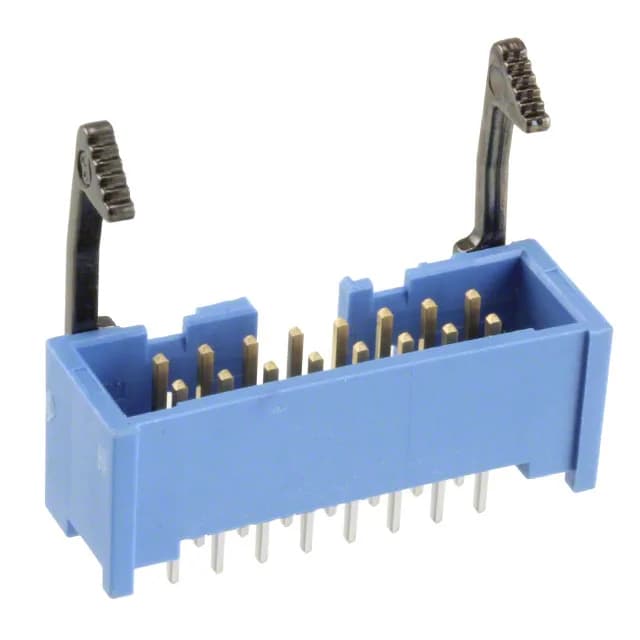

2-1761606-6 TE Connectivity AMP-Latch Header, 16 Pos, 2.54mm

MPN2-1761606-6
Active

TE Connectivity AMP-Latch, Header, Board to Cable/Wire, 16 Positions, 2.54mm Pitch, Through Hole, Solder, Shrouded - 4 Wall, Latch Lock/Eject Hooks, Long, 1A per Contact, 250VAC, -65°C ~ 105°C, Blue Insulation, UL94 V-0

$6.6200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-1761606-6 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks, Long
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlue
Insulation height0.404\" (10.26mm)
Insulation materialPolybutylene Terephthalate (PBT)

All specifications

2-1761606-6 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions16
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.102\" (2.60mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.237\" (6.02mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

AMP-Latch 16-Pin Header for Cable-to-Board Harnesses

The 2-1761606-6: This is a 16-position, 2-row, 0.100-inch (2.54mm) pitch pin header from the TE AMP-Latch series, designed for board-to-cable/wire applications. Rated 1 A per contact at 250 VAC, it handles signal-level currents in a -65°C to 105°C range, with a UL94 V-0 PBT insulator in blue.

Pitch, Positions, and Mating Half Fit

All 16 positions are loaded, with male square pins measuring 0.237-inch mating length and 0.102-inch post length for through-hole solder termination.

Frequently asked questions

What is the pinout of 2-1761606-6?

The pinout follows the standard 2-row, 16-position layout of the AMP-Latch series. All positions are loaded. The keying slot in the shroud ensures correct orientation with the mating receptacle.

Is 2-1761606-6 RoHS compliant?

Yes, it is ROHS3 Compliant.
