The 0.102" (2.60mm) post length is standard for a 1.6mm PCB — the solder tail protrudes enough for a visible fillet but doesn't bottom out in a thick backplane. Insulation height is 0.404" (10.26mm), so account for that above-board clearance when stacking boards or placing components behind the header.

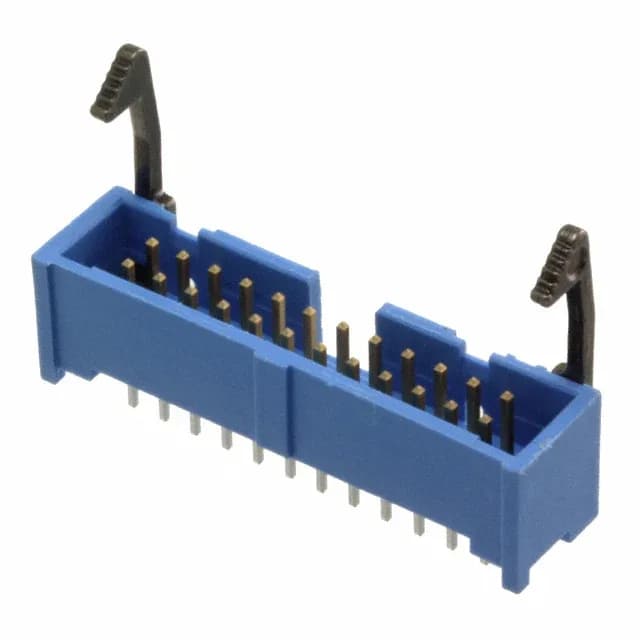

2-1761606-8 TE Connectivity AMP-Latch 24-Pin Header 2.54mm
MPN2-1761606-8
Active
TE Connectivity AMP-Latch, 2-1761606-8, Header, 24 circuits, 2.54mm pitch, 1A per contact, 250VAC, shrouded, latch lock/eject hooks, through-hole, blue PBT housing, UL94 V-0, gold or gold-palladium mating finish, tin post finish, active, ROHS3.
$7.9500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Long |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.404\" (10.26mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 24 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.237\" (6.02mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the mating connector for 2-1761606-8?
This header mates with an AMP-Latch IDC receptacle, 24 positions, 2.54mm pitch, 2-row. The latch lock/eject hooks engage the receptacle's locking slots.
