TE Connectivity AMP Connectors 2-1761606-9 — Pin Headers

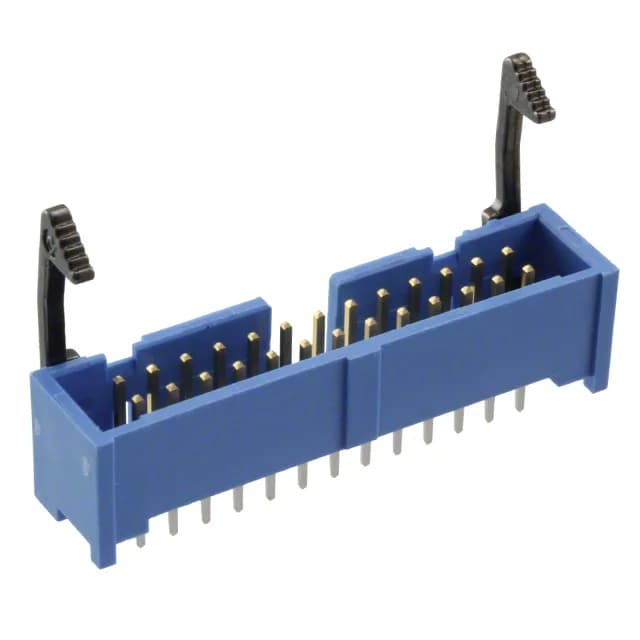

2-1761606-9 TE AMP-Latch Header 26POS 2.54mm Pitch

MPN2-1761606-9
Active

TE Connectivity AMP-Latch, Header, 26 Positions, 2.54mm Pitch, Through Hole, Solder, Shrouded - 4 Wall, Latch Lock/Eject Hooks, 1A per Contact, 250VAC, -65°C ~ 105°C, Blue Insulation, UL94 V-0

$8.2700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-1761606-9 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks, Long
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlue
Insulation height0.404\" (10.26mm)
Insulation materialPolybutylene Terephthalate (PBT)

All specifications

2-1761606-9 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions26
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.102\" (2.60mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.237\" (6.02mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

The 2-1761606-9 is a 26-position, 2-row, vertical through-hole header from the TE AMP-Latch series. It mates with standard 0.100-inch pitch IDC ribbon-cable sockets, making it the board-side half for parallel data buses in industrial controllers, test equipment, and legacy computing backplanes.

Mating pitch is 0.100 inch (2.54 mm) with a row spacing of 0.100 inch (2.54 mm) — the standard footprint for legacy IDC ribbon-cable connectors. Contact length on the mating side is 0.237 inch (6.02 mm), and the post length is 0.102 inch (2.60 mm).

Frequently asked questions

What is the pitch of 2-1761606-9?

The mating pitch is 0.100 inch (2.54 mm) with a row spacing of 0.100 inch (2.54 mm).

Is 2-1761606-9 RoHS compliant?

Yes, it is RoHS3 compliant.
