TE Connectivity AMP Connectors 2-1761607-1 — Pin Headers

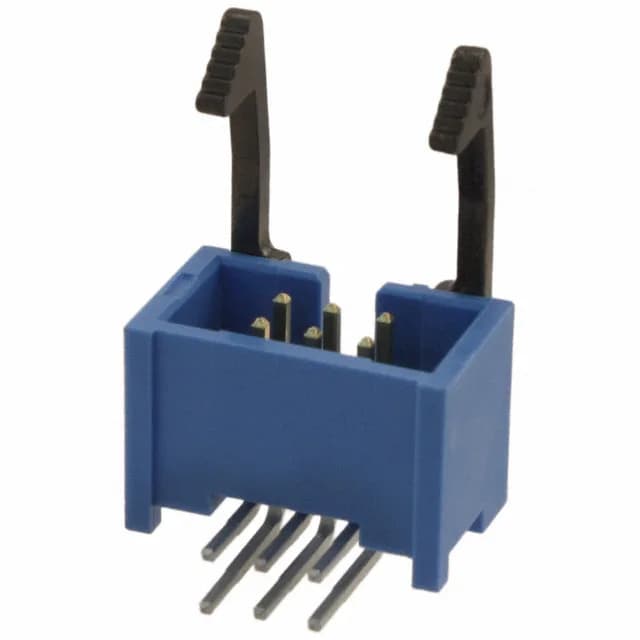

2-1761607-1 TE Connectivity AMP-Latch Header, 6 Pos, 2.54 mm

MPN2-1761607-1
Active

TE Connectivity AMP-Latch, Board to Cable/Wire header, 6 circuits, 2.54 mm pitch, right-angle through-hole, shrouded 4-wall, latch lock/eject hooks, gold mating finish, 1 A per contact, 250 VAC, UL94 V-0.

$4.5000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

2-1761607-1 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks, Long
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlue
Insulation height0.362\" (9.20mm)
Insulation materialPolybutylene Terephthalate (PBT)

All specifications

2-1761607-1 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions6
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.102\" (2.60mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.237\" (6.02mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Right-angle 6-position header for AMP-Latch ribbon cable

How it mates and terminates

Mates with AMP-Latch IDC socket connectors (e.g., 1-746285-6 or similar 6-position receptacles). The 0.237" (6.02 mm) mating pin length engages fully with the socket contact beam.

Peer comparison: 1-1871673-2 vs this header

The closest functional peer is 1-1871673-2: a 4-position, 2.50 mm pitch right-angle header with detent lock and tin mating finish. The 1-1871673-2 uses a detent lock and tin finish, suited for lower-cost, lower-cycle applications.

Frequently asked questions

What is the datasheet for 2-1761607-1?

Design engineers need the datasheet to validate pinout, dimensions, and electrical specs for fit.

Is 2-1761607-1 in stock?

Sourcing buyers need real-time inventory to fill a BOM line urgently.

What is the price of 2-1761607-1?

Buyers compare pricing across distributors for cost-effective procurement.

Is 2-1761607-1 RoHS compliant?

Regulatory compliance is mandatory for many electronic products and affects purchasing decisions.

Is 2-1761607-1 obsolete?

Maintenance techs and brokers need lifecycle status to plan replacements or last-time buys.

What is the mounting type for 2-1761607-1?

Design engineers must confirm through-hole or SMT compatibility for PCB layout.
