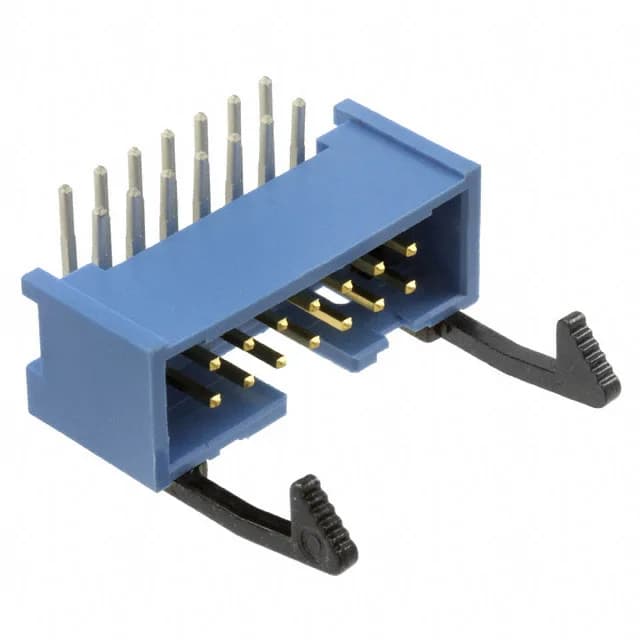

TE Connectivity AMP-Latch header, Board to Cable/Wire, 14 circuits, 0.100" (2.54mm) pitch, right-angle through-hole, shrouded 4-wall, latch lock/eject hooks, gold-plated mating contacts, rated 1A per contact at 250VAC.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Long |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.362\" (9.20mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.237\" (6.02mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The long latch lock/eject hooks secure the cable assembly and provide a positive extraction force when unmating.
The mating pin length is 0.237" (6.02mm), and the post length below the shroud is 0.102" (2.60mm) — enough for a standard 1.6mm PCB with a through-hole solder joint.
The keying slot in the shroud prevents mismating with non-keyed sockets.
The mating half is a standard 14-position, 2-row AMP-Latch IDC socket (ribbon-cable receptacle) with 0.100" pitch, such as TE part 1-746285-4. The header's latch lock/eject hooks engage the socket's locking ears.
Yes, it is ROHS3 compliant per the manufacturer's listing.
