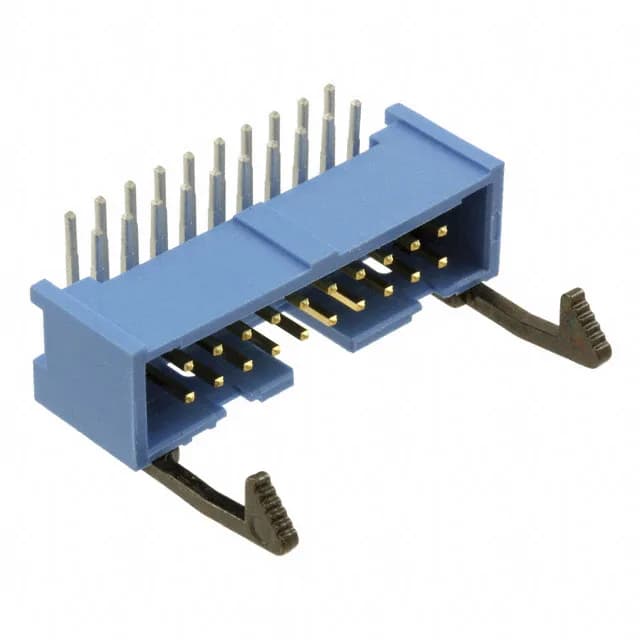

TE Connectivity AMP-Latch, Board to Cable/Wire, Header, 20 Positions, 2.54mm Pitch, Through Hole, Right Angle, Latch Lock/Eject Hooks, Long, 1A per Contact, 250VAC
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Long |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.362\" (9.20mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.237\" (6.02mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 2-1761607-7: This is a 20-position, dual-row header from the AMP-Latch series, pitched at 0.100" (2.54mm) — the standard grid for ribbon-cable IDC connectors. Mates with AMP-Latch IDC sockets that have the matching ejector latch windows.
The 1A limit is conservative for a 2.54mm-pitch contact — it keeps the temperature rise within the PBT housing's UL94 V-0 rating.
The style indicates the header is designed to mate with a cable-mounted socket (typically an IDC ribbon-cable connector), not for board-to-board stacking.
