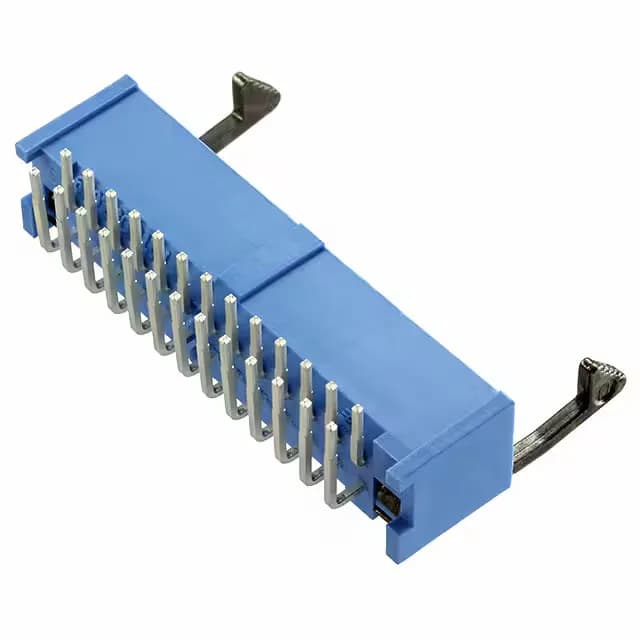

TE Connectivity AMP-Latch header, board-to-cable/wire, 26 positions, 0.100" (2.54mm) pitch, dual-row, right-angle through-hole, shrouded with latch lock/eject hooks, 1 A per contact, 250 VAC, gold-plated mating contacts, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Long |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.362\" (9.20mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.237\" (6.02mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 2-1761607-9: This 26-position header from TE's AMP-Latch series mates with a matching IDC socket for board-to-cable wiring. The tin-plated solder posts (100 µinch) are fine for the wave-solder joint.
This 26-position header sits between the 14-position 2-1761607-5 and other AMP-Latch variants in the same right-angle, latch-lock form factor.
RoHS compliant.
Yes, it is RoHS Compliant per the manufacturer's listing.
It is a 26-position, dual-row header with all positions loaded. The pinout follows the standard AMP-Latch grid: two rows of 13 pins each at 0.100" row spacing. The keying slot in the housing prevents mis-mating with the receptacle.
The 2-1761607-5 is the closest peer within the same AMP-Latch series — identical ratings, finish, and form factor, but with 14 positions instead of 26.
