TE Connectivity AMP Connectors 2-1761608-1 — Pin Headers

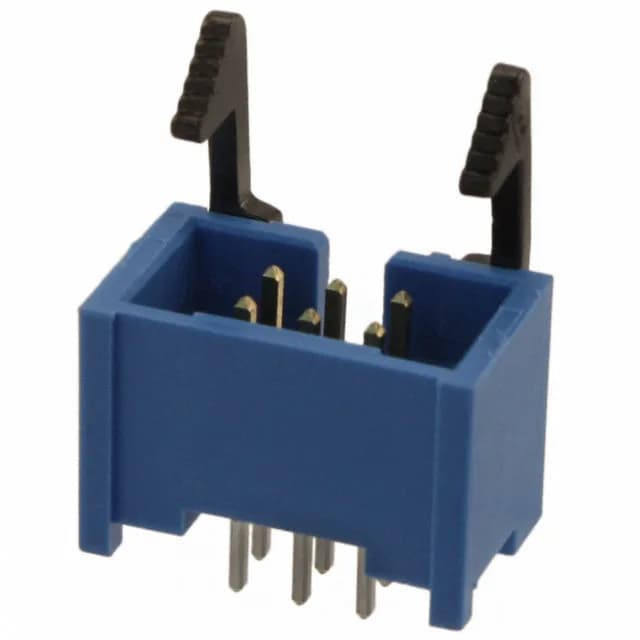

2-1761608-1 TE AMP-Latch Header 6 Pos 2.54mm Pitch

MPN2-1761608-1
Active

TE Connectivity AMP-Latch, Header, 6 Positions, 2 Rows, 0.100" (2.54mm) Pitch, Through Hole, Solder, Shrouded - 4 Wall, Latch Lock/Eject Hooks, Keying Slot, 1A per Contact, 250VAC, Blue Insulation

$4.8600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-1761608-1 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks, Short
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlue
Insulation height0.404\" (10.26mm)
Insulation materialPolybutylene Terephthalate (PBT)

All specifications

2-1761608-1 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions6
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.102\" (2.60mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.237\" (6.02mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

6-Position AMP-Latch Header for Ribbon Cable IDC Terminations

The 2-1761608-1: The 4-wall shrouding and keying slot prevent mis-mating and protect the male pins during handling, while the short latch lock/eject hooks provide secure retention and tool-free unmating.

Pitch, Positions, and Mating Half

All 6 positions are loaded, so there are no unpopulated pins to account for in the BOM. Compared to the 4-position 1-1871673-2 header from the same family, this part offers two additional circuits for slightly larger signal sets while maintaining the same 2-row layout.

Frequently asked questions

Does 2-1761608-1 have a keying slot?

Yes, the header includes a keying slot that ensures correct orientation with the mating AMP-Latch receptacle, preventing pin-one reversal on ribbon cable assemblies.

What is the mating connector for 2-1761608-1?

The keying slot and latch hooks align with the receptacle's key and locking mechanism.

Is 2-1761608-1 RoHS compliant?

Yes, it is RoHS3 compliant.
