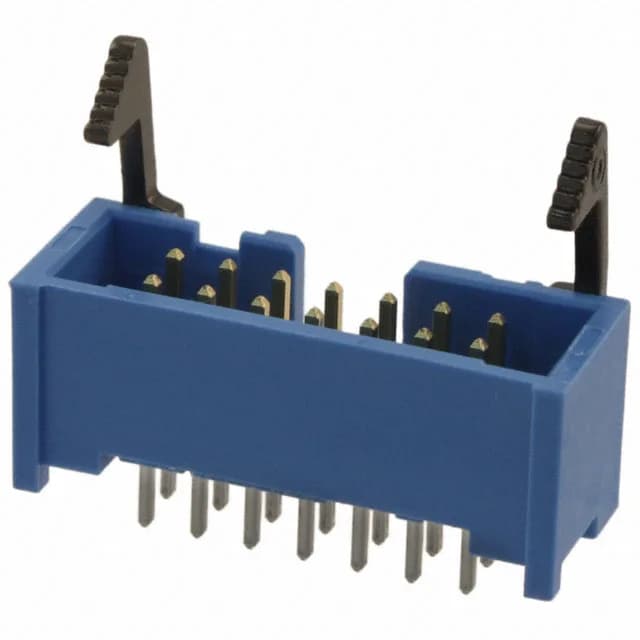

TE Connectivity AMP-Latch header, 2-1761608-5, 14 positions, 0.100" (2.54 mm) pitch, shrouded - 4 wall, latch lock/eject hooks, through hole, gold or gold-palladium mating finish, rated 1 A per contact at 250 VAC
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Short |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.404\" (10.26mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.237\" (6.02mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 2-1761608-5: The shroud is a full four-wall design with a keying slot to prevent mis-mating, and the fastening uses latch lock/eject hooks — short style, so the eject levers are compact but still give a positive lock against the receptacle.
The board-to-cable/wire style means this header mates with an IDC ribbon cable receptacle or discrete-wire housing — not another PCB.
The keying slot in the shroud ensures only a compatible receptacle with the matching key can be inserted.
Yes, 2-1761608-5 is RoHS compliant.
