TE Connectivity AMP-Latch, Header, 16 Positions, 0.100" (2.54mm) Pitch, Through Hole, Solder, Shrouded - 4 Wall, Latch Lock/Eject Hooks, 1A per Contact, 250VAC, Blue Insulation, Active
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Short |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.404\" (10.26mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.237\" (6.02mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |

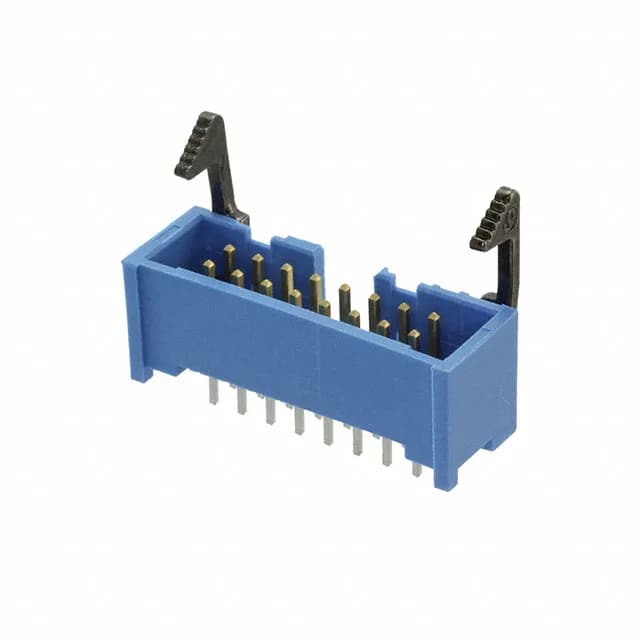

The 2-1761608-6: The shrouded 4-wall housing with keying slot prevents mis-mating, and the short latch lock/eject hooks hold the mating connector securely against vibration.
Through-hole termination with a 0.102" (2.60mm) post length fits standard 1.6mm PCBs; the square pin profile (0.025" square typical for the series) provides a solid solder joint.
The part ships in tube packaging (standard for through-hole headers).
The mating pitch is 0.100" (2.54mm), with the same 0.100" row spacing — the standard 2.54mm grid for IDC ribbon-cable connectors.
Rated 1A per contact at 250VAC.
