The 2-1761608-7 is a 20-position, 2-row, shrouded header from the AMP-Latch series, designed to mate with standard 0.100-inch pitch IDC ribbon cable sockets. The 4-wall shroud with a keying slot and short eject hooks gives the mated pair a positive latch that resists vibration and accidental disconnection. The keying slot ensures the mating socket only goes on one way, which saves a rework cycle on the line.

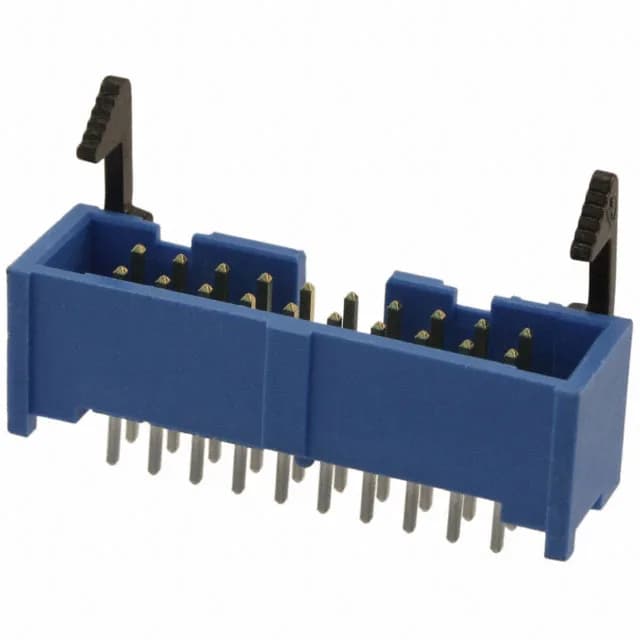

2-1761608-7 TE AMP-Latch Header 20 Pos 2.54mm Pitch
MPN2-1761608-7
Active
TE Connectivity AMP-Latch, Header, Board to Cable/Wire, 20 Positions, 2.54mm Pitch, Through Hole, Shrouded - 4 Wall, Latch Lock/Eject Hooks, Short, 1A per Contact, 250VAC
$8.9500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Short |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.404\" (10.26mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.237\" (6.02mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the 2-1761608-7 TE Connectivity header pitch?
The mating pitch is 0.100 inch (2.54 mm), and the row spacing is also 0.100 inch (2.54 mm). That matches the standard AMP-Latch IDC footprint.
Is 2-1761608-7 shrouded?
Yes, it is a shrouded - 4 wall header with a keying slot and short eject hooks with latch lock.
