TE Connectivity AMP-Latch, Header, Board to Cable/Wire, 10 Positions, 2 Rows, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Solder, Shrouded - 4 Wall, Latch Lock/Eject Hooks, Short, 1A per Contact, 250VAC
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Short |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.362\" (9.20mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.237\" (6.02mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |

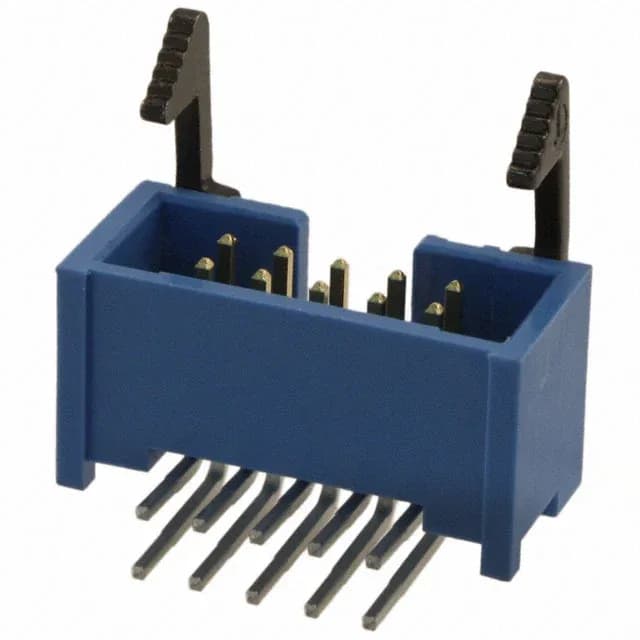

The 2-1761609-3: This is a 10-position, 2-row, 0.100" (2.54mm) pitch header from the TE AMP-Latch series, designed for board-to-cable/wire connections. It is a male pin header with square contacts, shrouded on all four walls, and uses a latch lock with short eject hooks to secure the mating cable connector.
This part is sourced to order through our distributor network. Submit an RFQ with your target quantity; we will confirm availability and current pricing at quote time. No stock-holding claim — every order is sourced fresh.
The header has 10 positions loaded in two rows (all positions populated). Row spacing is 0.100" (2.54mm). The pinout follows standard AMP-Latch numbering: row 1 pins 1-5, row 2 pins 6-10, with the keying slot on the mating face for orientation.
Yes, it uses latch lock/eject hooks (short type) to secure the mating cable connector. The shrouded 4-wall housing and keying slot also prevent mis-mating.
