2-1761609-6 TE Connectivity AMP-Latch Header, 16 Pos, 2.54mm

MPN2-1761609-6
Active

TE Connectivity AMP-Latch series, Board to Cable/Wire, Header, Male Pin, 16 Positions, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Solder Termination, Shrouded - 4 Wall, Latch Lock/Eject Hooks, Short, 1A per Contact, 250VAC

$8.0700Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-1761609-6 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-1761609-6 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks, Short
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlue
Insulation height0.362\" (9.20mm)
Insulation materialPolybutylene Terephthalate (PBT)

All specifications

2-1761609-6 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions16
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.102\" (2.60mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.237\" (6.02mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

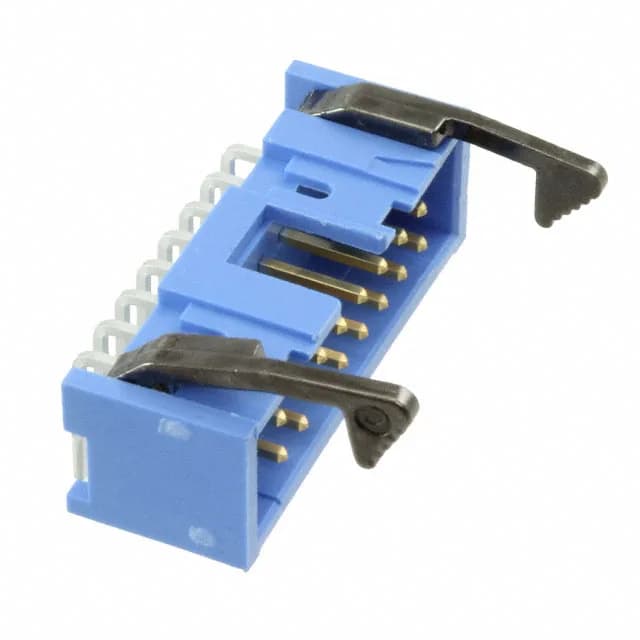

16-Position Right-Angle Header with Short Eject Hooks

The 2-1761609-6: This is a 16-circuit, 0.100" (2.54mm) pitch header from the AMP-Latch series, configured as a through-hole, right-angle male pin header with a full 4-wall shroud. The short eject hooks provide a positive latch lock with the mating receptacle — this is the locking style for cable assemblies that need to stay put under moderate vibration, not a friction-only fit. The gold or gold-palladium mating finish (30.0 µin) handles repeated mating cycles; the tin-plated posts (100.0 µin) solder cleanly into the board.

Mating contact length is 0.237" (6.02mm); post length is 0.102" (2.60mm) — confirm the board thickness and mating receptacle stack height against these dimensions. Insulation is blue PBT, rated UL94 V-0.
