Header identity and AMP-Latch series fit

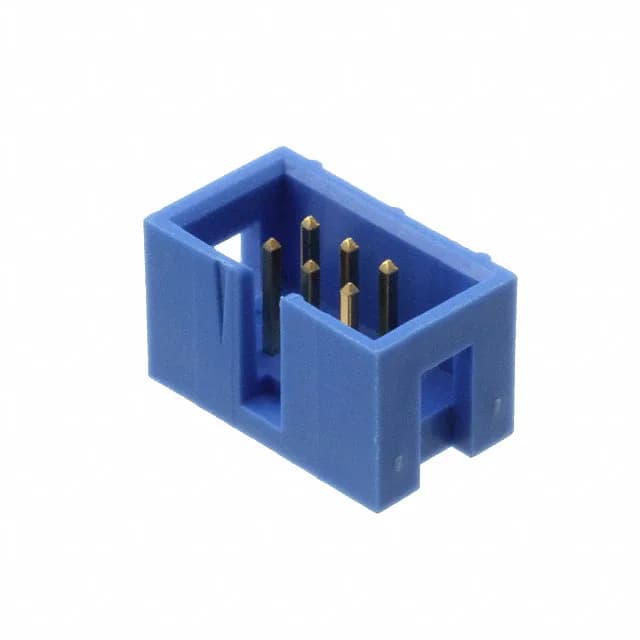

The 2-1761679-1 is a 6-position, 2-row vertical header from the TE AMP-Latch series, designed for board-to-cable/wire applications. It uses a 0.100" (2.54mm) pitch on both rows and the row spacing, matching the standard IDC ribbon cable footprint.
Contact plating and termination details
Mating contacts are gold-plated to 30.0µin (0.76µm) over phosphor bronze, providing corrosion resistance and reliable electrical contact over repeated mating cycles — typical for field-serviceable cable assemblies. The solder tails are tin-plated to 100.0µin (2.54µm) for good solderability with standard through-hole processes. Termination is solder only — the header has no compliant-pin or press-fit option. The contact length on the mating side is 0.240" (6.10mm), and the post length is 0.165" (4.19mm), which dictates the PCB thickness and solder-joint geometry.
