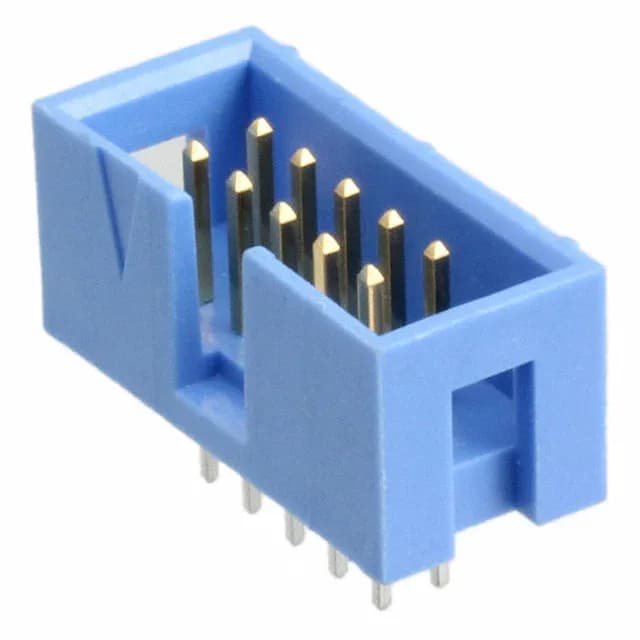

TE Connectivity AMP-Latch, Header, Board to Cable/Wire, 10 Positions, 0.100" (2.54mm) Pitch, Shrouded - 4 Wall, Through Hole, Gold Mating Finish, Tray
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.350\" (8.89mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Parameter | Value |
|---|---|
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.165\" (4.19mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 2-1761679-3: The four-wall shroud and keying slot guide the mating cable connector into alignment and prevent reverse insertion.
RoHS3 compliant, packaged in trays.
Mates with AMP-Latch IDC socket connectors (e.g., 1-746285-0 series) that accept 20-26 AWG ribbon cable.
We source this part per RFQ — submit your target quantity and delivery window, and we confirm availability and current pricing at quote time. No stock-holding claim; each order is sourced fresh.
This header mates with AMP-Latch IDC socket connectors designed for 0.100" pitch ribbon cable — look for TE part numbers in the 1-746285-0 or similar AMP-Latch socket series. The shroud and keying slot align the pair; no separate locking latch is needed.
