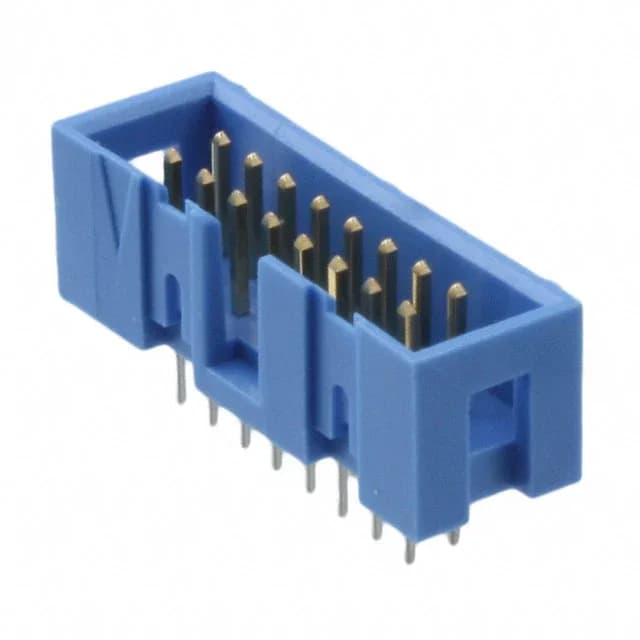

16-position AMP-Latch header for cable-to-board duty
The 0.100-inch (2.54mm) pitch matches the standard IDC ribbon cable footprint, and the 4-wall shrouding protects the male pins during mating and unmating. The keying slot prevents cross-mating with non-keyed receptacles, a practical safeguard when multiple AMP-Latch headers sit on the same board.
RoHS3 compliant — no exemption-based paperwork needed for EU or similar regulatory markets.
Termination is through-hole solder — the 0.165-inch (4.19mm) post length suits standard 1.6mm PCBs. Mates with AMP-Latch IDC receptacles (e.g., 1-111626-8 series) — the 0.240-inch (6.10mm) mating pin length ensures full contact wipe inside the receptacle.
